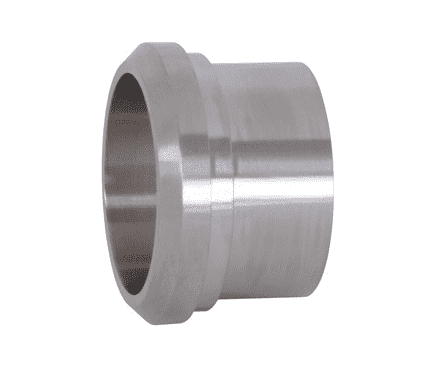

14A-G100 Dixon 304 Stainless Steel Sanitary Long Plain Bevel Seat Weld Ferrule - 1" Tube OD

14A-G100 Dixon Valve 304 Stainless Steel Sanitary Long Plain Bevel Seat Weld Ferrule - 1" Tube OD

$5.31 - $5.31
$5.31
$5.57
$5.57 - $5.57
$5.57

Dixon Sanitary Bevel Seat Ferrules - Long Plain Bevel Seat Weld Ferrules - 304 Stainless Steel
Specifications for Variant SKU: 14A-G100 Dixon
Shape (Orientation): No Orientation
Material(s): 304 Stainless Steel
Features:
  • 3-A Sanitary Standards for Sanitary Fittings, Number 63-03 (Authorization number 621).
Part Number Tube OD Dimensions
Weight
(Lbs.)
A B
14A-G100 1" 1.375" .870" 0.1350
14A-G150 1-1/2" 1.500" 1.370" 0.2300
14A-G200 2" 1.500" 1.870" 0.3400
14A-G250 2-1/2" 1.750" 2.370" 0.4900
14A-G300 3" 1.750" 2.870" 0.6500
14A-G400 4" 1.750" 3.834" 1.0850
