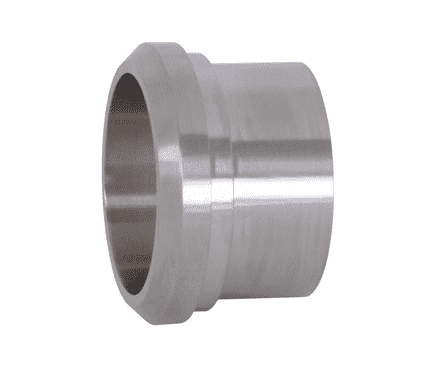

14A-G250 Dixon 304 Stainless Steel Sanitary Long Plain Bevel Seat Weld Ferrule - 2-1/2" Tube OD

14A-G250 Dixon Valve 304 Stainless Steel Sanitary Long Plain Bevel Seat Weld Ferrule - 2-1/2" Tube OD

Save $11.43 Save $11.43
$28.58
$28.58 - $28.58
$28.58
$17.15
$17.15 - $17.15
$17.15

Dixon Sanitary Bevel Seat Ferrules - Long Plain Bevel Seat Weld Ferrules - 304 Stainless Steel
Specifications for Variant SKU: 14A-G250 Dixon
Shape (Orientation): No Orientation
Material(s): 304 Stainless Steel
Features:
  • 3-A Sanitary Standards for Sanitary Fittings, Number 63-03 (Authorization number 621).
Part Number Tube OD Dimensions
Weight
(Lbs.)
A B
14A-G100 1" 1.375" .870" 0.1350
14A-G150 1-1/2" 1.500" 1.370" 0.2300
14A-G200 2" 1.500" 1.870" 0.3400
14A-G250 2-1/2" 1.750" 2.370" 0.4900
14A-G300 3" 1.750" 2.870" 0.6500
14A-G400 4" 1.750" 3.834" 1.0850
Dixon Valve & Coupling

Dixon Valve & Coupling

Dixon, founded in 1916, is a premier manufacturer and supplier of hose couplings, valves, dry disconnects, swivels, and other fluid transfer and control products. Our global reach includes a wide range of products for numerous industries including petroleum exploration, refining, transportation, chemical processing, food and beverage, steel, fire protection, construction, mining, and manufacturing.
