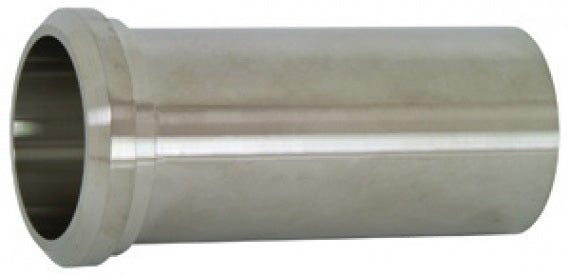

14AHT-G250 Dixon Valve Plain Bevel Seat Tygon® Hose Adapter - 2-1/2" Tube OD - 304 Stainless Steel

14AHT-G250 Dixon Valve Plain Bevel Seat Tygon® Hose Adapter - 2-1/2" Tube OD - 304 Stainless Steel

Save $79.15 Save $79.15
$197.87
$197.87 - $197.87
$197.87
$118.72
$118.72 - $118.72
$118.72

Dixon Sanitary Fittings Plain Bevel Seat Tygon® Hose Adapter

For use with Tygon® Tubing.
Specifications for Variant SKU: 14AHT-G250 Dixon
Shape (Orientation): Straight
Ends Configuration: 2-1/2in Tube Stub, 2-1/2in Plain Bevel Seat
Material(s): 304 Stainless Steel
Material:
  • 304 Stainless Steel
Part Number Size Dimensions
A B C D
14AHT-G150 1-1/2" 4.70" 1.00" 0.87" 1.32"
14AHT-G200 2" 4.70" 2.00" 1.87" 2.38"
14AHT-G250 2-1/2" 4.80" 2.50" 2.37" 2.91"
14AHT-G300 3" 4.90" 3.00" 2.87" 3.44"

Dixon Valve & Coupling

Dixon, founded in 1916, is a premier manufacturer and supplier of hose couplings, valves, dry disconnects, swivels, and other fluid transfer and control products. Our global reach includes a wide range of products for numerous industries including petroleum exploration, refining, transportation, chemical processing, food and beverage, steel, fire protection, construction, mining, and manufacturing.
