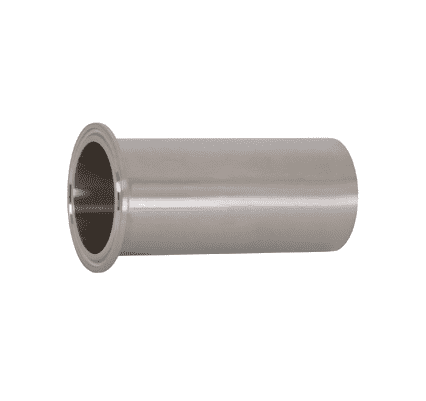

14MPHT-R50 Dixon Valve 316L Stainless Steel Sanitary Tygon Hose Adapter - 1/2" Tube OD

14MPHT-R50 Dixon Valve 316L Stainless Steel Sanitary Tygon Hose Adapter - 1/2" Tube OD

Save $19.05 Save $19.05
$47.62
$47.62 - $47.62
$47.62
$28.57
$28.57 - $28.57
$28.57

Dixon Sanitary Fittings Sanitary Clamp Adapter - Tygon® Hose Adapters - 316L Stainless Steel

For use with Tygon® Tubing.
Specifications for Variant SKU: 14MPHT-R50 Dixon
Shape (Orientation): Straight
Material(s): 316L Stainless Steel
Part Number Tube OD Dimensions

Weight (Lbs.)
A B C
14MPHT-R50 1/2" 4.000" 0.370" 0.500" 0.1550
14MPHT-R75 3/4" 4.000" 0.620" 0.750" 0.2100
14MPHT-R100 1" 4.500" 0.870" 1.000" 0.3600
14MPHT-R150 1-1/2" 4.500" 1.370" 1.500" 0.4400
14MPHT-R200 2" 4.500" 1.870" 2.000" 0.6700
14MPHT-R250 2-1/2" 4.500" 2.370" 2.500" 0.7620
14MPHT-R300 3" 4.500" 2.870" 3.000" 0.9200
14MPHT-R400 4" 4.625" 3.834" 4.000" 1.6215
14MPHT-R600 6" - - - 5.1600
Dixon Valve & Coupling

Dixon Valve & Coupling

Dixon, founded in 1916, is a premier manufacturer and supplier of hose couplings, valves, dry disconnects, swivels, and other fluid transfer and control products. Our global reach includes a wide range of products for numerous industries including petroleum exploration, refining, transportation, chemical processing, food and beverage, steel, fire protection, construction, mining, and manufacturing.
