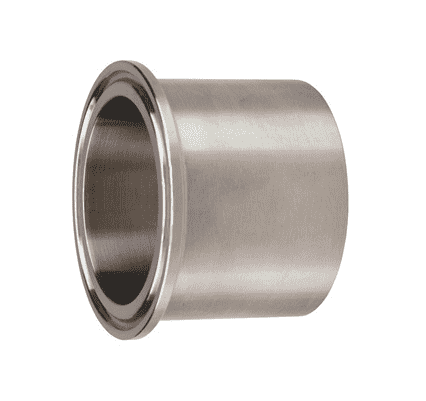

14MPW-R300 Dixon 316L Stainless Steel Sanitary Heavy Duty Tank Weld Ferrule - 3" Tube OD

14MPW-R300 Dixon Valve 316L Stainless Steel Sanitary Heavy Duty Tank Weld Ferrule - 3" Tube OD

Save $3.73 Save $3.73
$33.57
$33.57 - $33.57
$33.57
$29.84
$29.84 - $29.84
$29.84

Dixon Sanitary Fittings Sanitary Clamp Ferrule - Tank Weld Ferrule (heavy duty) - 316L Stainless Steel
Specifications for Variant SKU: 14MPW-R300 Dixon
Shape (Orientation): No Orientation
Material(s): 316L Stainless Steel
Features:
  • 3-A Sanitary Standards for Sanitary Fittings, Number 63-03 (Authorization number 621).
  • Certified ASME materials.
  • Not for use with bolted clamps.
Part Number Tube OD Dimensions

Weight (Lbs.)
A B C
14MPW-R50 1/2" 1.625 .321 .502 0.1500
14MPW-R75 3/4" 1.625 .574 .750 0.1500
14MPW-R100 1" 1.625 .870 1.160 0.3200
14MPW-R150 1-1/2" 1.625 1.370 1.676 0.4000
14MPW-R200 2" 1.750 1.870 2.192 0.5700
14MPW-R250 2-1/2" 1.750 2.370 2.708 0.7200
14MPW-R300 3" 1.813 2.870 3.224 0.9700
14MPW-R400 4" 2.125 3.834 4.256 1.7900
14MPW-R600 6" 2.500 5.758 6.192 1.7000
14MPW-R800 8" 2.500" 7.760" 8.190" 11.0000
14MPW-R1000 10" - - - -
