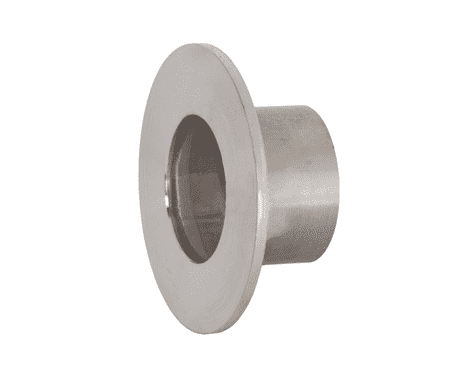

14VB-R300 Dixon 316L Stainless Steel Sanitary Unpolished Type A Stub End - 3" Tube OD

14VB-R300 Dixon Valve 316L Stainless Steel Sanitary Unpolished Type A Stub End - 3" Tube OD

$108.32 - $108.32
$108.32
$115.75
$115.75 - $115.75
$115.75

Dixon Sanitary Fittings Sanitary Unpolished Type A Stub End - 316L Stainless Steel

Typically used with B38SL flanges.
Specifications for Variant SKU: 14VB-R300 Dixon
Shape (Orientation): Straight
Ends Configuration: 3in Flange Stub, 3in Weld End
Material(s): 316L Stainless Steel
Special Properties: Unpolished
Part Number Tube OD Dimensions

Weight (Lbs.)
A B C D
14VB-R75 3/4" - - - - -
14VB-R100 1" 1.625" 2.000" 1.000" .065" 0.1800
14VB-R150 1-1/2" 1.750" 2.875" 1.500" .065" 0.3300
14VB-R200 2" 1.500" 3.625" 2.000" .065" 0.4600
14VB-R250 2-1/2" 2.000" 4.125" 2.500" .065" 0.6500
14VB-R300 3" 2.250" 5.000" 3.000" .065" 0.9400
14VB-R400 4" 2.625" 6.187" 4.000" .084" 1.6300
14VB-R600 6" 3.000" 8.500" 6.000" .109" 3.4000
14VB-R800 8" 3.000" 10.625" 8.000" .120" 2.8500
Dixon Valve & Coupling

Dixon Valve & Coupling

Dixon, founded in 1916, is a premier manufacturer and supplier of hose couplings, valves, dry disconnects, swivels, and other fluid transfer and control products. Our global reach includes a wide range of products for numerous industries including petroleum exploration, refining, transportation, chemical processing, food and beverage, steel, fire protection, construction, mining, and manufacturing.
