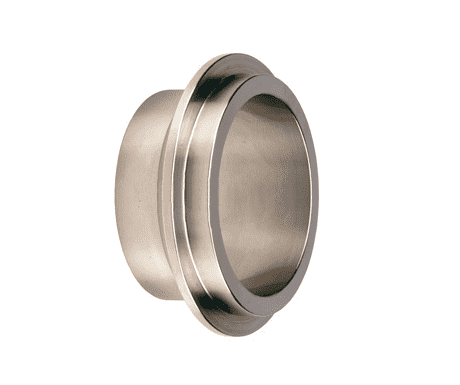

14WI-G150 Dixon 304 Stainless Steel Sanitary Male I-Line Short Weld Ferrule - 1-1/2" Tube OD

14WI-G150 Dixon Valve 304 Stainless Steel Sanitary Male I-Line Short Weld Ferrule - 1-1/2" Tube OD

Save $8.51 Save $8.51
$21.28
$21.28 - $21.28
$21.28
$12.77
$12.77 - $12.77
$12.77

Dixon Sanitary I-Line Ferrules - Male I-Line Short Weld Ferrules - 304 Stainless Steel
Specifications for Variant SKU: 14WI-G150 Dixon
Shape (Orientation): No Orientation
Material(s): 304 Stainless Steel
Features:
  • 3-A Sanitary Standards for Sanitary Fittings, Number 63-03 (Authorization number 621).
Part Number Tube OD Dimensions
Weight
(Lbs.)
A
14WI-G100 1" .600" 0.2200
14WI-G150 1-1/2" .765" 0.1900
14WI-G200 2" .790" 0.4100
14WI-G250 2-1/2" .848" 0.5400
14WI-G300 3" .906" 0.7400
14WI-G400 4" 1.031" 1.0700
Dixon Valve & Coupling

Dixon Valve & Coupling

Dixon, founded in 1916, is a premier manufacturer and supplier of hose couplings, valves, dry disconnects, swivels, and other fluid transfer and control products. Our global reach includes a wide range of products for numerous industries including petroleum exploration, refining, transportation, chemical processing, food and beverage, steel, fire protection, construction, mining, and manufacturing.
