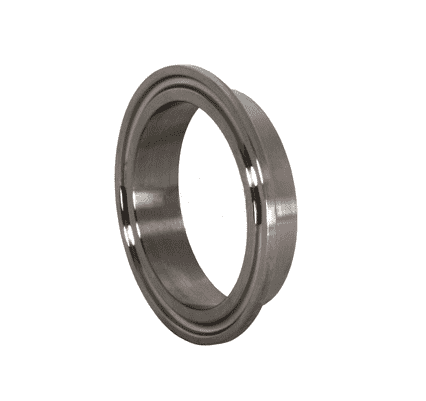

14WMP-R600 Dixon 316L Stainless Steel Sanitary Short Weld Ferrule - 6" Tube OD

14WMP-R600 Dixon Valve 316L Stainless Steel Sanitary Short Weld Ferrule - 6" Tube OD

Save $6.11 Save $6.11
$54.98
$54.98 - $54.98
$54.98
$48.87
$48.87 - $48.87
$48.87

Dixon Sanitary Clamp Ferrules - Short Weld Ferrules - 316L Stainless Steel
Specifications for Variant SKU: 14WMP-R600 Dixon
Shape (Orientation): No Orientation
Material(s): 316L Stainless Steel
Features:
  • 3-A Sanitary Standards for Sanitary Fittings, Number 63-03 (Authorization number 621).
Part Number Tube OD Dimensions (in)
Weight
(Lbs.)
A B C
14WMP-R50 1/2" .500 .370 .500 0.0400
14WMP-R75 3/4" .500 .620 .750 0.0300
14WMP-R100 1" .500 .870 1.000 0.1500
14WMP-R150 1-1/2" .500 1.370 1.500 0.0900
14WMP-R200 2" .500 1.870 2.000 0.1300
14WMP-R250 2-1/2" .500 2.370 2.500 0.1500
14WMP-R300 3" .500 2.870 3.000 0.2100
14WMP-R400 4" .625 3.834 4.000 0.3900
14WMP-R600 6" .875 5.782 6.000 0.9700
14WMP-R800 8" .875 7.760 8.000 1.2500
14WMP-R1000 10" .875 9.782 10.000 1.6600
14WMP-R1200 12" .875 11.760 12.000 2.0200
