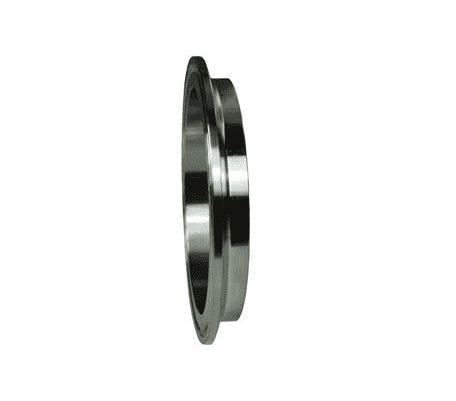

14WMX-R600 Dixon Valve 316L Stainless Steel Sanitary Schedule 10S Short Weld Pipe Size Ferrule - 6" Pipe Size

14WMX-R600 Dixon Valve 316L Stainless Steel Sanitary Schedule 10S Short Weld Pipe Size Ferrule - 6" Pipe Size

Save $56.33 Save $56.33
$140.82
$140.82 - $140.82
$140.82
$84.49
$84.49 - $84.49
$84.49

Dixon Sanitary Fittings Sanitary Pipe Size Ferrule - Schedule 10S Short Weld Ferrule - 316L Stainless Steel

3-A Sanitary Standards for Sanitary Fittings, Number 63-03 (Authorization number 621).
Specifications for Variant SKU: 14WMX-R600 Dixon
Shape (Orientation): No Orientation
Material(s): 316L Stainless Steel
Features:
  • 3-A Sanitary Standards for Sanitary Fittings, Number 63-03 (Authorization number 621).
  • 3A sanitary finish ID and OD.
  • Please note in sizes 1/2" through 12" pipe is known by its nominal inside diameter, which differs from its actual inside diameter. To distinguish pipe sizes from actual measured diameters as used for tube, the terms iron pipe size (IPS) or nominal pipe size (NPS) are usually used. For all pipe sizes, the outside diameter (OD) remains constant; the variations in wall thickness affect the inside diameter (ID).
Part Number Pipe Size Pipe OD Wall Thickness Dimensions
A B C D
14WMX-R100 1" 1.32" 0.109" 1.98" 0.50" 1.10" 1.32"
14WMX-R150 1-1/2" 1.90" 0.065" 2.52" 0.50" 1.68" 1.90"
14WMX-R200 2" 2.38" 0.065" 3.05" 0.50" 2.16" 2.38"
14WMX-R250 2-1/2" 2.88" 0.083" 3.58" 0.50" 2.64" 2.88"
14WMX-R300 3" 3.50" 0.083" 4.13" 0.50" 3.26" 3.50"
14WMX-R400 4" 4.50" 0.083" 5.13" 0.63" 4.26" 4.50"
14WMX-R600 6" 6.625" 0.134" 7.20" 0.88" 6.35" 6.63"
14WMX-R1000 10" - - - - - -
