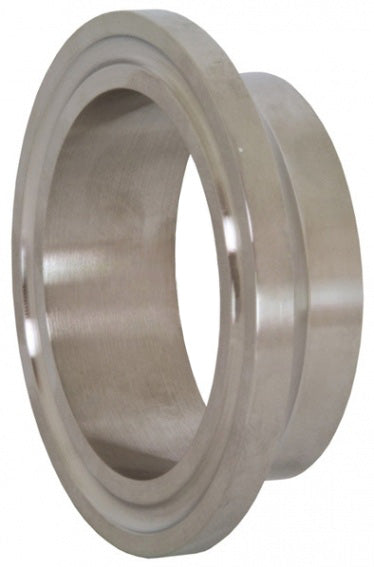

14WQ-R200 Dixon Valve 316L Stainless Steel Sanitary Q-line Weld Ferrule - 2" Tube OD

14WQ-R200 Dixon Valve 316L Stainless Steel Sanitary Q-line Weld Ferrule - 2" Tube OD

Save $24.18 Save $24.18
$60.45
$60.45 - $60.45
$60.45
$36.27
$36.27 - $36.27
$36.27

Dixon Sanitary Fittings Sanitary Q-line Ferrule - Q-line Weld Ferrule

3-A Sanitary Standards for Sanitary Fittings, Number 63-03 (Authorization number 621).
Specifications for Variant SKU: 14WQ-R200 Dixon
Shape (Orientation): No Orientation
Material(s): 316L Stainless Steel
304 Stainless Steel
Part Number		 316L Stainless Steel
Part Number		 Tube OD Dimensions
A B C D E
14WQ-G100 14WQ-R100 1" 1.98" 1.00" 0.87" 0.53" 1.44"
14WQ-G150 14WQ-R150 1-1/2" 1.98" 1.50" 1.37" 0.56" 1.72"
14WQ-G200 14WQ-R200 2" 2.64" 2.00" 1.87" 0.81" 2.25"
14WQ-G250 14WQ-R250 2-1/2" 3.31" 2.50" 2.37" 0.94" 2.84"
14WQ-G300 14WQ-R300 3" 3.87" 3.00" 2.87" 0.94" 3.38"
14WQ-G400 14WQ-R400 4" 4.87" 4.00" 3.83" 1.00" 4.38"
