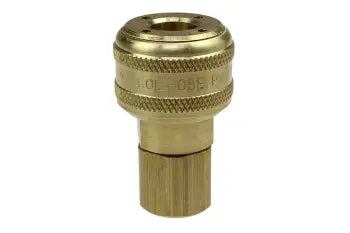

150A by Coilhose | Coilflow™ Automatic Industrial Interchange Coupler | 1/4" Body Size | 1/4" Female NPT Thread | Straight | Brass (Type 15)

Save $1.99 Save $1.99
Original price $17.90
Original price $17.90 - Original price $17.90
Original price $17.90
Current price $15.91
$15.91 - $15.91
Current price $15.91
Coilhose Pneumatics - Couplers & Connectors - Coilflow™ Couplers - Automatic - Industrial Interchange 1/4" Body Size (Type 15)
Specifications for Variant SKU: 150A Coilhose
Brand: Coilflow
Shape (Orientation): Straight
Material(s): Brass
Overview:
  • Coilflow™ Automatic Industrial Series Couplers are designed for stationary mounting where a simple "one handed" push-to-connect operation is desirable. These automatic couplers feature a compact size, quality all-brass, rugged construction and are interchangeable with all other manufacturer's Industrial interchanges.
  • Automatic couplers are available in four different body sizes with male or female thread connectors up to 3/4" NPT; also with hose barb up to 1/2" I.D. hose. These couplers will accept all Coilhose Industrial interchange connectors as well as other manufacturers' connectors which conform to MIL-C4109 specifications.
Features:
  • Automatic Couplers offer a durable connection with years of service.
  • Easy, One-Handed Connection
  • Knurled Body Enhances Grip
  • Made in USA
Body Size: 1/4" Type: Type 15
Interchange: Industrial Style: Automatic
Locking Device: 3 Pawls Internal Valve: Zinc-Plated Steel
Body Material: Brass Sleeve Material: Brass
Maximum Input Pressure: 300 PSI Temperature Range: -40°F to 250°F
Seals: Nitrile (Buna N)

Thread & Barb Size
Part No
Female
Part No
Male
Part No
Hose Barb
Part No
Lock-On Hose Barb
1/4" 150A 152A 153A 153AL
3/8" 151A 155A 156A 156AL -
