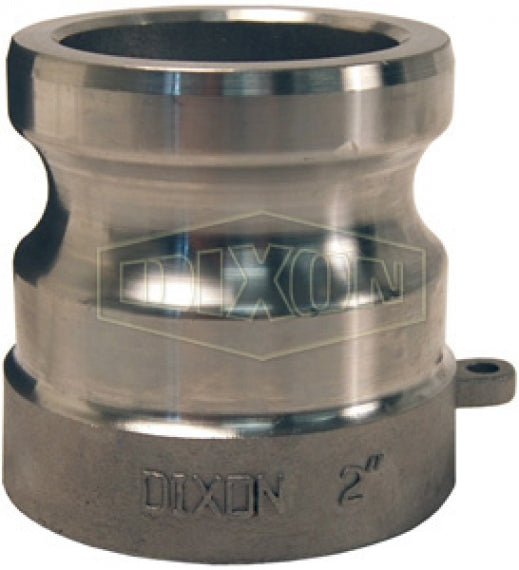

150AWSPSS by Dixon Valve | Cam & Groove Adapter for Welding | 1-1/2" Adapter Socket Weld x Schedule 40 Pipe | 316 Stainless Steel

Name: 150AWSPSS by Dixon Valve | Cam & Groove Adapter for Welding | 1-1/2" Adapter Socket Weld x Schedule 40 Pipe | 316 Stainless Steel
Brand: Dixon
SKU: 150AWSPSS Dixon
Price: 81.36 USD
Availability: InStock

Save $6.22

$87.58

$87.58 - $87.58

$87.58

$81.36

$81.36 - $81.36

$81.36

Dixon Valve
Cam & Groove Adapter for Welding | Adapter Socket Weld x Schedule 40 Pipe

Designed for use with liquids.

Quantity

Specifications for Variant SKU: 150AWSPSS Dixon
Shape (Orientation):	Straight
Ends Configuration:	1-1/2in Weld End, 1-1/2in Weld End, Some Ends Match
Material(s):	316 Stainless Steel

Safety Notes:
Dixon® and Boss-Lock cam & groove couplings do not interchange in the 8" size. Under no circumstances should cam and groove couplings be used for compressed air or steam service! Final weld preparation, as with all weld fittings, is the responsibility of the welder. Pressure rating recommendations are based on the use of mating Dixon fittings at ambient temperature 70°F / 21°C with a standard seal installed. For use at elevated temperature or other unusual operating conditions, consult Dixon.
Specifications:
Produced to interchange with all product produced to Commercial Item Description A-A-59326D.

356T6 Aluminum Part Number	316 Stainless Steel Part Number	Size	Bore	Maximum Operating Pressure
-	75AWSPSS	3/4"	1.065"	250 PSI
-	100AWSPSS	1"	1.330"	250 PSI
150AWSPAL	150AWSPSS	1-1/2"	1.915"	250 PSI
200AWSPAL	200AWSPSS	2"	2.390"	250 PSI
300AWSPAL	300AWSPSS	3"	3.530"	125 PSI
400AWSPAL	400AWSPSS	4"	4.530"	100 PSI
500AWSPAL	500AWSPSS	5"	5.593"	75 PSI
600AWSPAL	600AWSPSS	6"	6.655"	75 PSI
800AWSPAL	-	8"	8.711"	50 PSI

Dixon Valve & Coupling

Dixon, founded in 1916, is a premier manufacturer and supplier of hose couplings, valves, dry disconnects, swivels, and other fluid transfer and control products. Our global reach includes a wide range of products for numerous industries including petroleum exploration, refining, transportation, chemical processing, food and beverage, steel, fire protection, construction, mining, and manufacturing.
