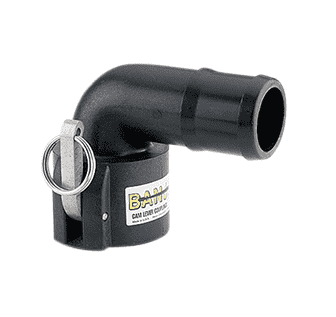

150C90 Banjo Polypropylene 90 deg. Cam Lever Coupling - Part C - 1-1/2" 90 deg. Female Coupler x 1-1/2" Hose Shank - 125 PSI - Gasket: EPDM

150C90 by Banjo | Cam Lever Coupling | Part C | 1-1/2" Female Coupler x 1-1/2" Hose Shank | 90° Elbow | 225 PSI | Gasket: EPDM | Polypropylene | Pack of 10

Save $19.33

$174.00

$174.00 - $174.00

$174.00

$154.67

$154.67 - $154.67

$154.67

Banjo Cam Lever Couplings - Polypropylene 90 deg. Couplings - 1-1/2" Series

Package Quantity: 10 EA

Quantity

Specifications for Variant SKU: 150C90 Banjo \| 10 \|
Shape (Orientation):	90 Degree
Cam Type:	Type C
Ends Configuration:	1-1/2in Female Cam & Groove, 1-1/2in Hose Barb
Material(s):	Polypropylene
Seal Material(s):	EPDM

Applications:
Agriculture Industrial Fluids
Features:
Precision molded - insures a uniform and accurate fit Stainless steel rings, cam levers and pins resist corrosion. Banjo 90° angle couplings and adapters will reduce the number of elbows and other pipe fittings used in plumbing applications WARNING: Couplings should not be disconnected under pressure or with liquid in the line. For other sizes & configurations see: Banjo 45° & 90° Polypropylene Cam Lever Couplings
Guide:

Part Number	Type	End Type	Max PSI	Gasket
150A90	Part A	1-1/2" 90° Male Adapter x 1-1/2" Female NPT	225 PSI	EPDM
150C90	Part C	1-1/2" 90° Female Coupler x 1-1/2" Hose Shank	225 PSI	EPDM
150D90	Part D	1-1/2" 90° Female Coupler x 1-1/2" Female NPT	300 PSI	EPDM
150F90	Part F	1-1/2" 90° Male Adapter x 1-1/2" Male NPT	300 PSI	EPDM

Banjo

Banjo is a world-class producer of a wide range of mechanical and electrical valves, fittings, and self-priming centrifugal pumps for agriculture and numerous industrial applications that ship to every corner of the globe. Banjo employs an array of molding presses, numerous machining and assembly cells, and an optimized logistics system empowering our production and shipping operations.
