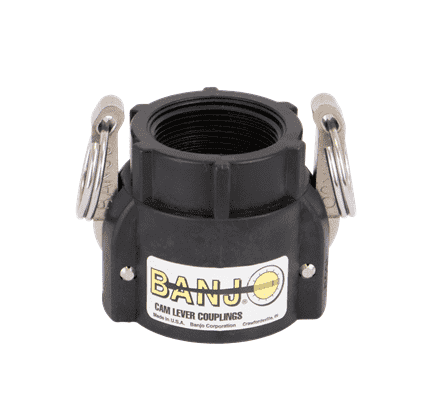

150DB Banjo Polypropylene Cam Lever Coupling - Part D - 1-1/2" Female Coupling x 1-1/2" British Standard Pipe

150DB by Banjo | Cam Lever Coupling | Part D | 1-1/2" Female Coupling x 1-1/2" BSP | 300 PSI | Polypropylene | Pack of 10

Save $13.45 Save $13.45
$121.05
$121.05 - $121.05
$121.05
$107.60
$107.60 - $107.60
$107.60

Banjo Cam Lever Couplings - Polypropylene Cam Lever Couplings - 1/2" Series

Package Quantity: 10 EA

Specifications for Variant SKU: 150DB Banjo | 10 |
Shape (Orientation): Straight
Cam Type: Type D
Ends Configuration: 1-1/2in Female Cam & Groove, 1-1/2in Male BSPP
Material(s): Polypropylene
Applications:
  • Agriculture
  • Industrial
  • Fluids
Features:
  • Stainless steel rings, arms & pins
  • Most complete line of polypropylene couplings available
  • Versatile - interchangeable with all types of cam lever couplers
  • Precision molded - insures a uniform and accurate fit
  • Durable - Polypropylene is glass reinforced for rugged strength and durability
  • Smooth operating - finger rings are designed for easy opening of cam levers
  • Complete series of 1/2", 3/4", 1", 1-1/4", 1-1/2", 2", 3" and 4" NPT thread
  • BSP threads available 1" - 3" sizes (excluding 1-1/4")
  • Economical and superior in performance
  • Standard with EPDM gaskets. Buna "N", and FKM (viton type) also available
  • Note: 303B & 303C & All 4" Couplings have 3 Arms for POSITIVE SEAL!
  • WARNING: Couplings should not be disconnected under pressure or with liquid in the line.
  • For other sizes & replacement parts, see: Banjo Polypropylene Cam Lever Couplings & Replacement Parts
Guide:

Part Number Type End Type Max PSI Gasket
75A1/2 Part A 3/4" Male Adapter x 1/2" Female NPT 225 PSI None
150AB Part A 1-1/2" Male Adapter x 1-1/2" Female Pipe Thread/British Standard Pipe 225 PSI None
75B1/2 Part B 3/4" Female Coupler x 1/2" Male NPT 300 PSI EPDM
050C Part C 3/4" Female Coupler x 1/2" Hose Shank 300 PSI EPDM
050D Part D 3/4" Female Coupler x 1/2" Female NPT 300 PSI EPDM
150DB Part D 1-1/2" Female Coupling x 1-1/2" Female British Standard Pipe 300 Psi None
050E Part E 3/4" Male Adapter x 1/2" Hose Shank 300 PSI None
050F Part F 3/4" Male Adapter x 1/2" Male NPT 300 PSI None
150FB Part F 1-1/2" Male Adapter x 1-1/2" Male British Standard Pipe 300 PSI None
075CAP Part CAP 3/4" Cap - Male Adapter 300 PSI EPDM
75PL Part PL 3/4" Plug - Female Coupler 300 PSI None

Note: 1/4", 3/8" and 1/2" series couplings interchange with 3/4" size couplings. Coupling ends are 3/4" size 1-1/4" series couplings interchange with 1" size couplings. Coupling ends are 1" size. 1-1/2" x 1-1/4" couplings interchange with 1-1/2" size couplings. Coupling ends are 1-1/2" size

Banjo

Banjo

Banjo is a world-class producer of a wide range of mechanical and electrical valves, fittings, and self-priming centrifugal pumps for agriculture and numerous industrial applications that ship to every corner of the globe. Banjo employs an array of molding presses, numerous machining and assembly cells, and an optimized logistics system empowering our production and shipping operations.
