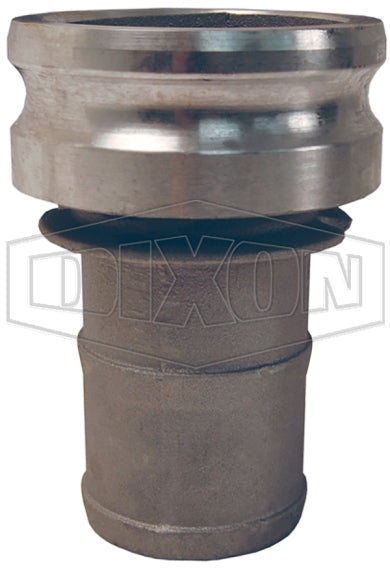

1510-E-SS by Dixon Valve | Cam & Groove Reducer (Jump Size) Adapter | Type E | 1-1/2" Adapter x 1" Hose Shank | 316 Stainless Steel

1510-E-SS by Dixon Valve | Cam & Groove Reducer (Jump Size) Adapter | Type E | 1-1/2" Adapter x 1" Hose Shank | 316 Stainless Steel

Save $109.57 Save $109.57
$273.92
$273.92 - $273.92
$273.92
$164.35
$164.35 - $164.35
$164.35

Dixon Valve
Cam & Groove Reducer (Jump Size) Coupler | Type E | Adapter x Hose Shank

Designed for use with liquids.
Specifications for Variant SKU: 1510-E-SS Dixon
Shape (Orientation): Straight
Cam Type: Type E
Ends Configuration: 1-1/2in Male Cam & Groove, 1in Hose Barb
Material(s): 316 Stainless Steel
Safety Notes:
  • Under no circumstances should cam and groove couplings be used for compressed air or steam service!
  • Pressure rating is based on the seal of the mating part.
  • Pressure rating recommendations are based on the use of mating Dixon fittings at ambient temperature 70°F (21°C) with a standard seal installed. For use at elevated temperature or other unusual operating conditions, consult Dixon.
How It Works:
  • To make a connection, simply slide the adapter into the coupler and with normal hand pressure, press the cam levers down.
  • Uncoupling is as quick and simple as coupling. Just lift the cam arms and remove the adapter.
Specifications:
  • Produced to interchange with all product produced to Commercial Item Description A-A-59326D.
356T6 Aluminum
Part Number		 316 Stainless Steel
Part Number		 Size
Adapter x Hose Shank		 Maximum Operating Pressure
- 1510-E-SS 1-1/2" x 1" 250 PSI
2015-E-AL* 2015-E-SS* 2" x 1-1/2" 250 PSI
- 3020-E-SS* 3" x 2" 125 PSI
- 3025-E-SS 3" x 2-1/2" 125 PSI
4030-E-AL 4030-E-SS* 4" x 3" 100 PSI
5040-E-AL* - 5" x 4" 75 PSI

* Parts are produced as a welded fabrication.
