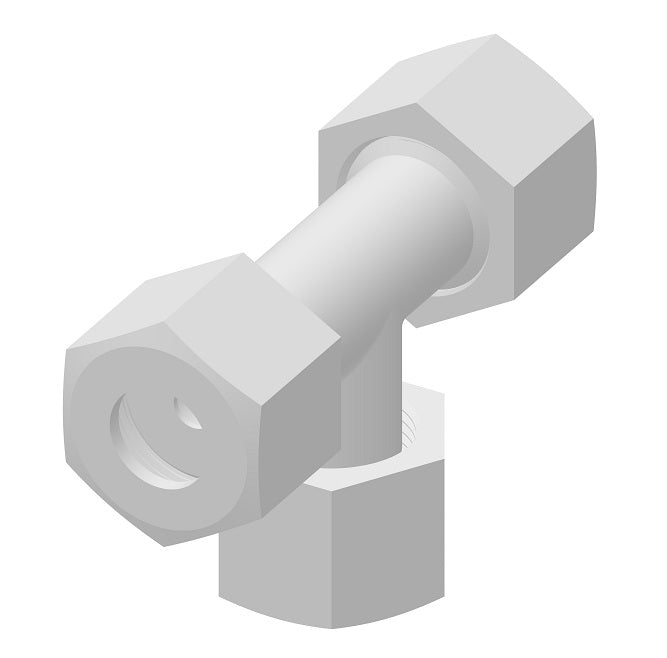

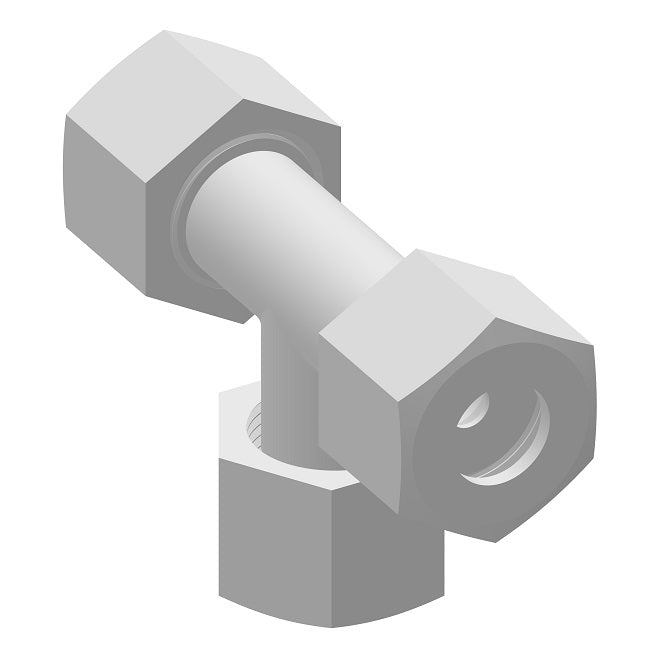

1564PX8 by Danfoss | Compression Tube | Union Tee | 1/2" Tube OD x 1/2" Tube OD x 1/2" Tube OD | Polypropylene

1564PX8 by Danfoss | Compression Tube | Union Tee | 1/2" Tube OD x 1/2" Tube OD x 1/2" Tube OD | Polypropylene

Name: 1564PX8 by Danfoss | Compression Tube | Union Tee | 1/2" Tube OD x 1/2" Tube OD x 1/2" Tube OD | Polypropylene
Brand: Danfoss/Eaton
SKU: 1564PX8 Danfoss
Price: 8.98 USD
Availability: InStock

$8.98 - $8.98

$8.98

$8.98 - $8.98

$8.98

Aeroquip® by Danfoss
Molded Compression Tube - Union Tee
Compression End x Compression End x Compression End

Specifications for Variant SKU: 1564PX8 Danfoss
Shape (Orientation):	90 Degree
Ends Configuration:	1/2in Tube Compression, 1/2in Tube Compression, 1/2in Tube Compression, Some Ends Match
Material(s):	Polypropylene
Compatible with the following Series:	PT200 Series \| PT240 Series \| TP160 Series

Features/Benefits:
Leak-free performance. High integrity in both mechanical and acoustical vibrations. Easy assembly - no special tools or tube preparation necessary. Reliability in side-loaded applications allows for compact plumbing. Connectors come fully assembled - for your convenience. Very low resistance to media flow resulting from material and internal surfaces. No metal parts to corrode or present a safety hazard with aggressive chemicals. ISO 9001 Certified.
Materials:
Nylon Characteristics: Good resistance to organic solvents, oils, and gasoline. Excellent impact resistance. Tolerant to repeated steam for wash down and longtime weathering. F.D.A. and N.S.F. listed. Operating temperatures: -40°F to 200°F (-40°C to 93°C) - not to exceed temperature specification of tubing. Polypropylene Characteristics: Good chemical and corrosion resistance. Opaque. 20% glass filled. N.S.F. listed. Operating temperatures: -30°F to 200°F (-34°C to 93°C) - not to exceed temperature specification of tubing.
Styles:
Ferrule Nut (integral nut and sleeve for soft tubing to 50 PSI). Features ferrule and nut molded as a single part, eliminating the need for a two-piece assembly. Gripper Nut* with separate plastic sleeve (for sure-grip with plastic tubing up to 220 PSI*). For higher pressure applications.
Operating Temperatures:
Nylon: -40°F to 200°F (-40°C to 93°C) - not to exceed temperature specification of tubing. Polypropylene: -30°F to 200°F (-34°C to 93°C) - not to exceed temperature specification of tubing.
Compatible Tubing:
For use with PT200, PT240, and TP160 plastic tubing. Tube inserts are recommended for optimal performance with PT200 tubing.

* Operating temperatures of Eaton connectors are regulated by ambient and fluid temperatures, type of fluid being carried, tubing type and conditions of mechanical abuse. Pressures in excess of above specifications in all connector sizes should be tested by the customer in the particular application.


Tube OD	1/8" (.125")	1/4" (.250")	5/16" (.312")	3/8" (.375")	1/2" (.500")	5/8" (.625")	3/4" (.750")
Tube Thread Size	5/16-24	7/16-20	1/2-20	5/8-20	3/4-20	7/8-20	1-1/16-20


Nylon Part Number	Nylon with GRIPPER Nut Part Number	Polypropylene Part Number	Polypropylene with GRIPPER Nut Part Number	Tube O.D.	L	D	N	Across Flats F
1564X2	-	-	-	1/8"	1.11"	0.11"	0.52"	1/4"
1564X4	1564X4G	1564PX4	-	1/4"	1.44"	0.22"	0.72"	23/64"
1564X6	-	1564PX6	1564PX6G	3/8"	1.91"	0.30"	0.97"	17/32"
-	1564X8G	1564PX8	-	1/2"	2.13"	0.48"	1.03"	11/16"
