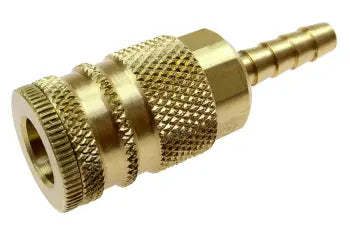

156AL by Coilhose | Coilflow™ Automatic Industrial Interchange Coupler | 1/4" Body Size | 3/8" Lock -on Hose Barb | Straight | Brass (Type 15)

Save $3.51

$31.62

$31.62 - $31.62

$31.62

$28.11

$28.11 - $28.11

$28.11

Coilhose Pneumatics - Couplers & Connectors - Coilflow™ Couplers - Automatic - Industrial Interchange 1/4" Body Size (Type 15)

Quantity

Specifications for Variant SKU: 156AL Coilhose
Brand:	Coilflow
Shape (Orientation):	Straight
Material(s):	Brass

Overview:
Coilflow™ Automatic Industrial Series Couplers are designed for stationary mounting where a simple "one handed" push-to-connect operation is desirable. These automatic couplers feature a compact size, quality all-brass, rugged construction and are interchangeable with all other manufacturer's Industrial interchanges. Automatic couplers are available in four different body sizes with male or female thread connectors up to 3/4" NPT; also with hose barb up to 1/2" I.D. hose. These couplers will accept all Coilhose Industrial interchange connectors as well as other manufacturers' connectors which conform to MIL-C4109 specifications.
Features:
Automatic Couplers offer a durable connection with years of service. Easy, One-Handed Connection Knurled Body Enhances Grip Made in USA

Body Size:	1/4"	Type:	Type 15
Interchange:	Industrial	Style:	Automatic
Locking Device:	3 Pawls	Internal Valve:	Zinc-Plated Steel
Body Material:	Brass	Sleeve Material:	Brass
Maximum Input Pressure:	300 PSI	Temperature Range:	-40°F to 250°F
Seals:	Nitrile (Buna N)

Thread & Barb Size
Thread & Barb Size	Part No Female	Part No Male	Part No Hose Barb	Part No Lock-On Hose Barb
1/4"	150A	152A	153A	153AL
3/8"	151A	155A	156A	156AL	-
