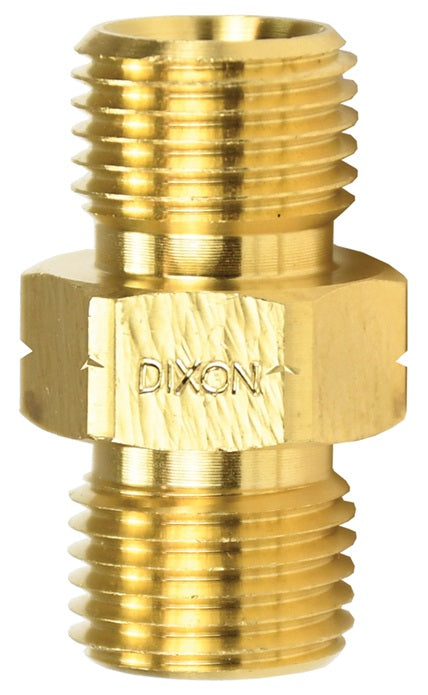

1580909C by Dixon Valve | Welding Oxy-Acetylene Connecting Spud | Left-Hand Thread x Left-Hand Thread | 9/16" Male UNF x 9 /16 Male UNF | Brass

1580909C by Dixon Valve | Welding Oxy-Acetylene Connecting Spud | Left-Hand Thread x Left-Hand Thread | 9/16" Male UNF x 9 /16 Male UNF | Brass

Save $0.50 Save $0.50
$4.46
$4.46 - $4.46
$4.46
$3.96
$3.96 - $3.96
$3.96

Dixon Valve
Oxy-Acetylene Connecting Spud

Use with Oxy-Acetylene Hose.

For Low-pressure welding applications, connecting your tank to pressure regulators or torches.

For use with acetylene, butane, fuel gases, LP gas, natural gas, oxygen, and propane.
Can I get a discount on my purchase?

Our listed prices are our lowest possible price with current costing but when volumes/value are high enough sometimes we can pass on a discount from the manufacturer.

Some products have predefined quantity discounts that will apply automatically, those pages have a table near the price describing the discount teirs.

If you feel your purchase quantity of a particular product is very large and want us to investigate with the manufacturer please feel free to Contact Us.

What if my item is out of stock?

All customers get an email regarding the shipping time frame of their purchase, usually within the business day. If your item is in stock we will ship within 1 business day, otherwise, the email will contain a lead time. If you do not receive this email, we recommend checking your email's spam folder. If you have any questions at that point please do not hesitate to Contact Us or chat below!

Can I get free shipping?

Shipping will calculate as free instantly if your order value exceeds $5000.

Some exceptions apply.

Free Freight is only available for the Contiguous USA.

Specifications for Variant SKU: 1580909C Dixon
Series: 158 Series
Shape (Orientation): Straight
Material(s): Brass
Use:
  • It is recommended that hose assemblies be fabricated using hose clamps or crimped ferrules in conjunction with hose barbs.
Compatible Hoses:
  • All Grade R and Grade RM single or twin-line oxygen (green) acetylene (red) industrial welding hoses.
  • Parker 7110 and 7126 or equivalent.
Approvals:
  • Meets Compressed Gas Association (CGA) connection Nos.
Specifications:
  • 200 PSI (1400 kPa) 72°F (22°C) maximum working pressure with 4:1 safety factor for fittings, but a 15 PSI maximum must be observed on the acetylene side.
  • Operating temperatures: -40°F to 160°F (-40°F to 71°C) at 150 PSI maximum.
Material:
  • Brass: Alloy 360.
Safety Notes:
  • Use 1" long crimp ferrules only for optimum hose engagement.
  • Use only acetylene as a fuel gas.
  • Use only a proper striker for ignition.
  • A thread sealant is recommended for tapered pipe thread connections with 156 and 158-Series adapters.
Part
Number		 Previous
Part Number		 CGA
Number		 Description Male UNF Thread Hex
1580909C OA52 023 Left-Hand Thread x Left-Hand Thread 9/16"-18 11/16"
1560909C OA50 022 Right-Hand Thread x Right-Hand Thread 9/16"-18 11/16"
