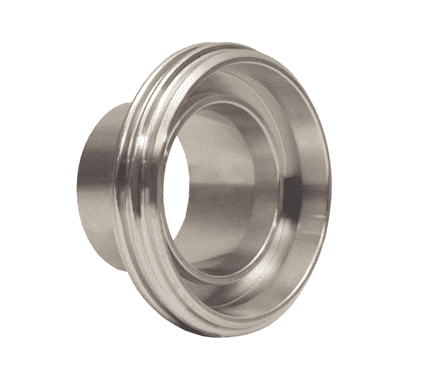

15A-R300DIN Dixon Bradford Sanitary European Fitting - 316 Stainless Steel DIN Welding Male - 3" Tube OD - 80 DN Size

15A-R300DIN Dixon Valve Bradford Sanitary European Fitting - 316 Stainless Steel DIN Welding Male - 3" Tube OD - 80 DN Size

Save $0.44 Save $0.44
$44.29
$44.29 - $44.29
$44.29
$43.85
$43.85 - $43.85
$43.85

Dixon's Bradford™ Sanitary European Fittings - DIN Welding Males - 316 Stainless Steel
Specifications for Variant SKU: 15A-R300DIN Dixon
Shape (Orientation): Straight
Material(s): 316 Stainless Steel
Features:
  • DIN 11851
Part Number Tube OD DN Size Dimensions
Weight
(Lbs.)
A B
15A-R100DIN 1" 25 1.14" 2.04" 0.1100
15A-R150DIN 1-1/2" 40 1.30" 2.55" 0.1500
15A-R200DIN 2" 50 1.38" 3.04" 0.2200
15A-R250DIN 2-1/2" 65 1.57" 3.74" 0.3500
15A-R300DIN 3" 80 1.77" 4.31" 0.7500
15A-R400DIN 4" 100 2.13" 5.12" 0.8600
Dixon Valve & Coupling

Dixon Valve & Coupling

Dixon, founded in 1916, is a premier manufacturer and supplier of hose couplings, valves, dry disconnects, swivels, and other fluid transfer and control products. Our global reach includes a wide range of products for numerous industries including petroleum exploration, refining, transportation, chemical processing, food and beverage, steel, fire protection, construction, mining, and manufacturing.
