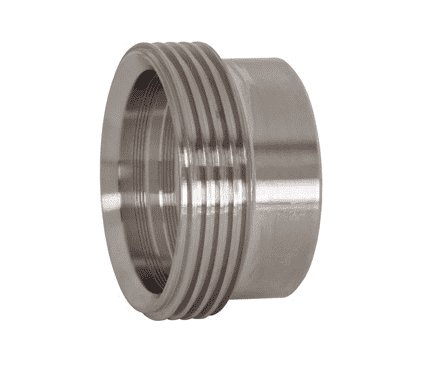

15R-G150 Dixon 304 Stainless Steel Sanitary Recessless Threaded Bevel Seat Ferrule for Expanding - 1-1/2" Tube OD

15R-G150 Dixon Valve 304 Stainless Steel Sanitary Recessless Threaded Bevel Seat Ferrule for Expanding - 1-1/2" Tube OD

Save $8.51 Save $8.51
$21.27
$21.27 - $21.27
$21.27
$12.76
$12.76 - $12.76
$12.76

Dixon Sanitary Fittings Sanitary Bevel Seat Ferrule - Recessless Threaded Bevel Seat Ferrule for Expanding - 304 Stainless Steel
Specifications for Variant SKU: 15R-G150 Dixon
Shape (Orientation): No Orientation
Material(s): 304 Stainless Steel
Part Number Tube OD Dimensions
 Weight (Lbs.)
A B C
15R-G100 1" 0.810" 1.010" 1.460" 0.1150
15R-G150 1-1/2" 1.130" 1.510" 1.980" 0.2200
15R-G200 2" 1.380" 2.010" 2.530" 0.3450
15R-G250 2-1/2" 1.500" 2.510" 3.060" 0.5150
15R-G300 3" 1.630" 3.010" 3.580" 0.7500
15R-G400 4" 1.630" 4.010" 4.700" 1.1850
