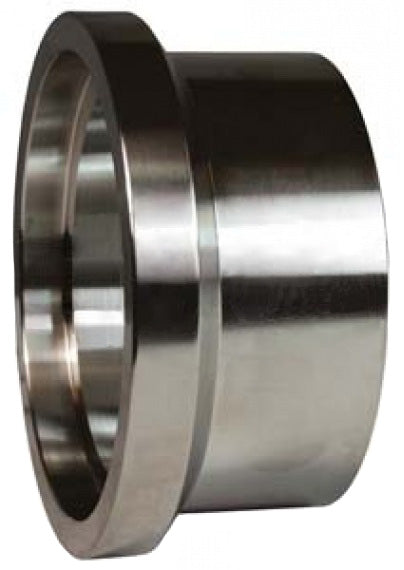

15WHI-G200 Dixon Valve Female I-Line Heavy Wall Tank Weld Ferrule - 2" Tube OD - 304 Stainless Steel

15WHI-G200 Dixon Valve Female I-Line Heavy Wall Tank Weld Ferrule - 2" Tube OD - 304 Stainless Steel

$0.00 - $0.00
$0.00
$0.00
$0.00 - $0.00
$0.00

Dixon Sanitary Fittings Female I-Line Heavy Wall Tank Weld Ferrule

3-A Sanitary Standards for Sanitary Fittings, Number 63-03 (Authorization number 621).
Specifications for Variant SKU: 15WHI-G200 Dixon
Shape (Orientation): No Orientation
Material(s): 304 Stainless Steel
304 Stainless Steel
Part Number		 316L Stainless Steel
Part Number		 Tube OD Dimensions
A B C D E
15WHI-G100 - 1" 1.99" 1.27" 1.50" 0.87" 1.25"
15WHI-G150 15WHI-R150 1-1/2" 2.00" 1.76" 1.63" 1.37" 1.69"
15WHI-G200 15WHI-R200 2" 2.64" 2.26" 1.75" 1.87" 2.25"
15WHI-G250 - 2-1/2" 3.31" 2.76" 1.75" 2.37" 2.75"
15WHI-G300 15WHI-R300 3" 3.87" 3.32" 1.81" 2.87" 3.31"
- 15WHI-R600 6" - - - - -
Dixon Valve & Coupling

Dixon Valve & Coupling

Dixon, founded in 1916, is a premier manufacturer and supplier of hose couplings, valves, dry disconnects, swivels, and other fluid transfer and control products. Our global reach includes a wide range of products for numerous industries including petroleum exploration, refining, transportation, chemical processing, food and beverage, steel, fire protection, construction, mining, and manufacturing.
