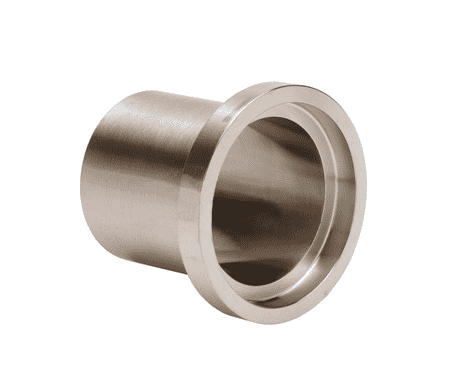

15WLI-R300 Dixon 316L Stainless Steel Sanitary Female I-line Long Weld Ferrule - 3" Tube OD

15WLI-R300 Dixon Valve 316L Stainless Steel Sanitary Female I-line Long Weld Ferrule - 3" Tube OD

Save $59.23 Save $59.23
$148.07
$148.07 - $148.07
$148.07
$88.84
$88.84 - $88.84
$88.84

Dixon Sanitary Fittings Sanitary I-Line Ferrule - Female I-line Long Weld Ferrule - 316L Stainless Steel
Specifications for Variant SKU: 15WLI-R300 Dixon
Shape (Orientation): No Orientation
Material(s): 316L Stainless Steel
Features:
  • 3-A Sanitary Standards for Sanitary Fittings, Number 63-03 (Authorization number 621).
Part Number Tube OD Dimensions
 Weight (Lbs.)
A B C D E
15WLI-R100 1" 1.750" 1.010" 0.870" 1.270" 1.990" 0.3600
15WLI-R150 1-1/2" 2.031" 1.510" 1.370" 1.760" 1.990" 0.2800
15WLI-R200 2" 2.312" 2.010" 1.870" 2.260" 2.640" 0.5650
15WLI-R250 2-1/2" 2.500" 2.510" 2.370" 2.760" 3.310" 0.7600
15WLI-R300 3" 2.690" 3.010" 2.870" 3.320" 3.870" 1.0305
15WLI-R400 4" 3.000" 4.010" 3.830" 4.320" 4.870" N/A
15WLI-R600 6" 3.000" 6.010" 5.780" 6.920" 7.500" 4.0000
15WLI-R800 8" - - - - - -
Dixon Valve & Coupling

Dixon Valve & Coupling

Dixon, founded in 1916, is a premier manufacturer and supplier of hose couplings, valves, dry disconnects, swivels, and other fluid transfer and control products. Our global reach includes a wide range of products for numerous industries including petroleum exploration, refining, transportation, chemical processing, food and beverage, steel, fire protection, construction, mining, and manufacturing.
