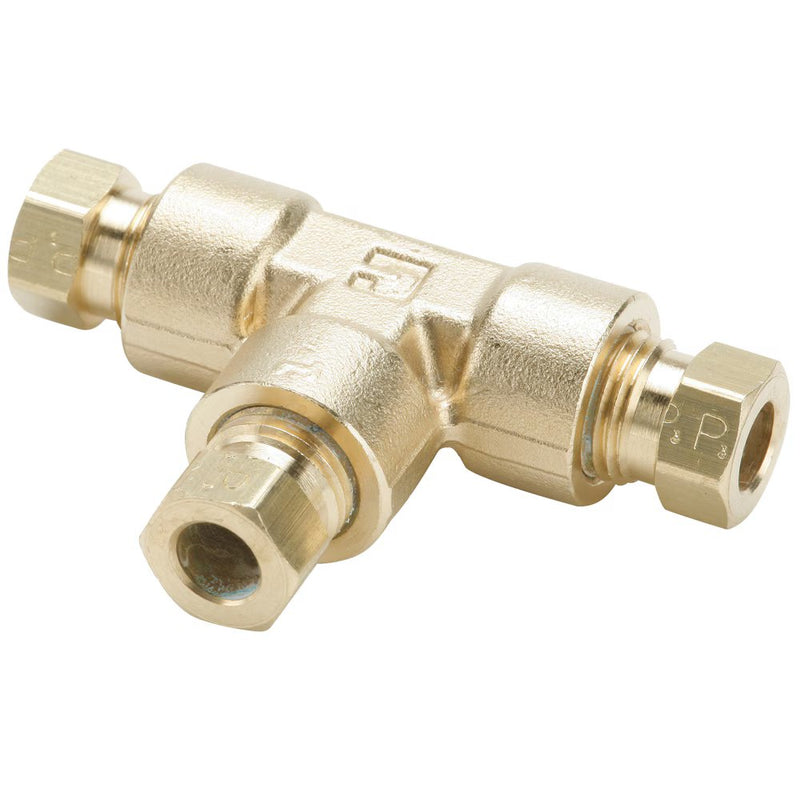

164HD-8 by Parker | Hi-Duty Fittings | Union | 1/2" Tube Size | Min. Orifice Size: .437" | 2.96" Length | Tee | Brass | Pack of 5

164HD-8 by Parker | Hi-Duty Fittings | Union | 1/2" Tube Size | Min. Orifice Size: .437" | 2.96" Length | Tee | Brass | Pack of 5

Save $186.26 Save $186.26
$465.65
$465.65 - $465.65
$465.65
$279.39
$279.39 - $279.39
$279.39

by Parker Hannifin
Hi-Duty Flareless Tube Fittings:Union Tee 164HD

Package Quantity: 5 Units

Specifications for Variant SKU: 164HD-8 Parker | 5 |
Series: 164HD Series
Shape (Orientation): Tee
Material(s): Brass
Special Properties: Fuel Grade
Product Features:
  • All brass construction
  • Two piece fitting
  • Higher pressure rating
  • Easy assembly
Markets:
  • Mobile
  • Industrial
  • Compressors
  • Lubrication
Applications:
  • Lubrication Lines
  • Coolant Lines
  • Oil Lines
  • Engines
Specification:
Pressure Range: Up to 150 PSI (10.3 bar)
Temperature Range: -65° to +250° F (-53.8° to +121.1° C)
Pressure Range: See Chart Below
Compatible Tubing:
  • Copper
  • Brass
  • Seamless Steel
  • Thermoplastic Tubing
Part Number Tube Size Minimum Orifice Size A B Hex (C)
164HD-4 1/4" .187" 1.082" .687" .500"
164HD-6 3/8" .312" 1.357" .970" .562"
164HD-8 1/2" .437" 1.481" 1.060" .750"
