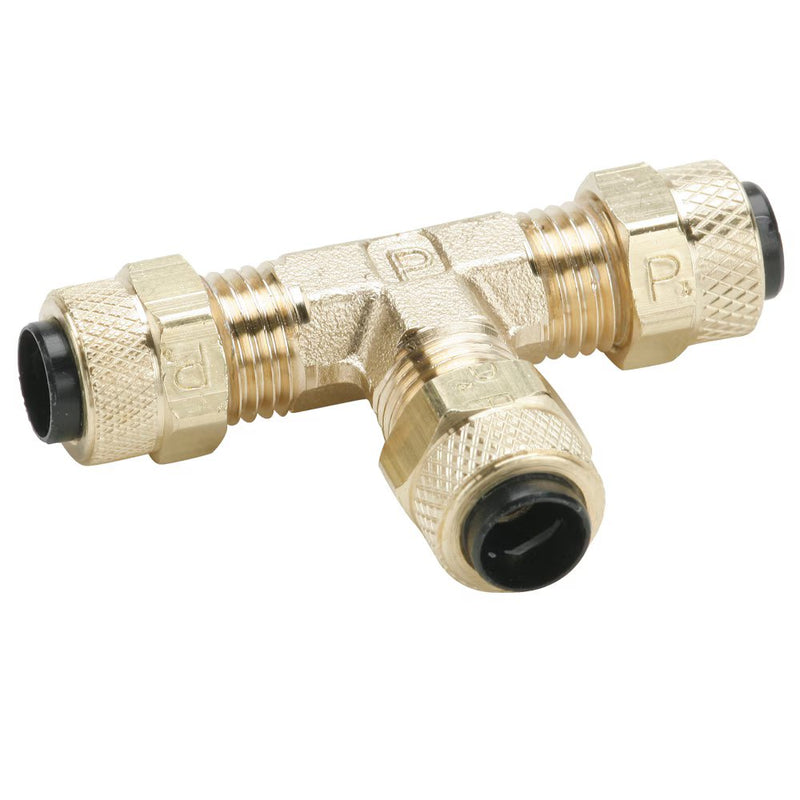

164P-4 by Parker | Poly-Tite Fittings | Union | 1/4" Tube Size x 3/8" Thread | 1.68" Length | Tee | Brass | Pack of 50

Save $310.25

$775.62

$775.62 - $775.62

$775.62

$465.37

$465.37 - $465.37

$465.37

by Parker Hannifin
Poly-Tite Fittings:Union Tee 164P

Package Quantity: 50 Units

Specifications for Variant SKU: 164P-4 Parker \| 50 \|
Series:	164P Series
Shape (Orientation):	Tee
Material(s):	Brass, Acetal Copolymer
Special Properties:	Silicone Free

Specification:
Product Features:	Self aligning captive sleeve Built-in tube support Knurled nuts for hand tightening Plastic and brass sleeves available Chrome plated and stainless steel side latch couplers available
Markets:	Dental Packaging Machine Tools Car Wash Printing
Applications:	Pneumatic Systems Water Lines Dental Equipment
Pressure Range:	Up to 150 PSI (10.3 bar)
Temperature Range:	0° to +150° F (-17.7° to +65.5° C)
O-Rings:	Buna N on chrome plated couplers Fluorocarbon on Stainless Steel couplers
Compatible Tubing:	Polyethylene Nylon Polypropylene Vinyl


Part Number	Tube Size	Straight Thread	L	M	Flow Diameter (F)
164P-4	1/4"	3/8"-24	.84"	.73"	.125"
164P-5	5/16"	7/16"-24	.83"	.73"	.144"
164P-6	3/8"	1/2"-24	.98"	.86"	.203"
164P-8	1/2"	11/16"-24	1.12"	1.04"	.323"
