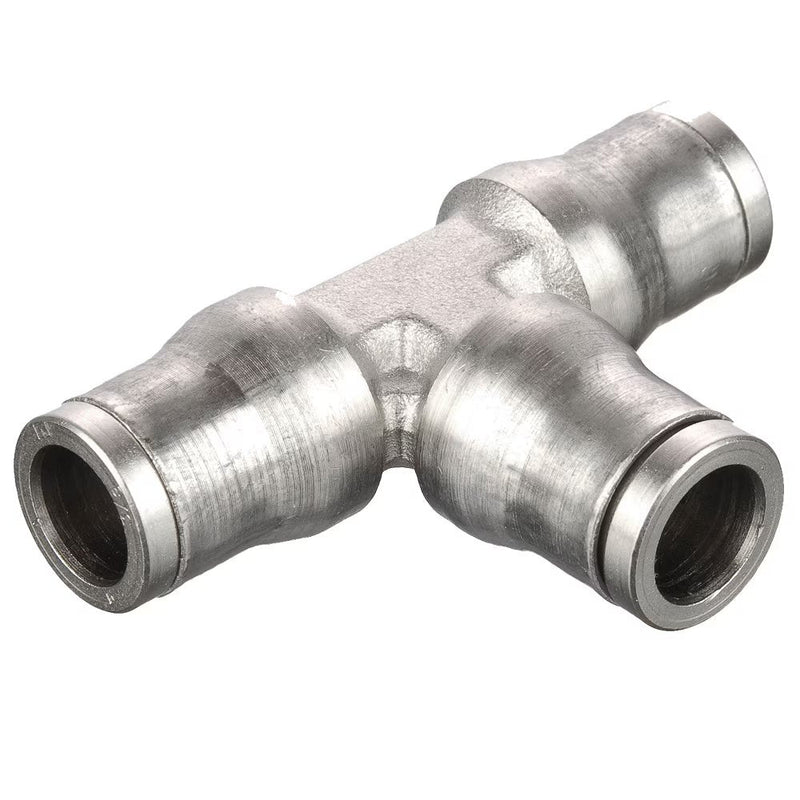

164PLM-10M by Parker | Prestolok PLM Metal Push-to-Connect Fittings | Tube to Tube Fittings | 10 mm Tube Size | 58 mm Length | 37.50 mm Width | Tee | Electroless Nickel-Plated Brass | Pack of 10

164PLM-10M by Parker | Prestolok PLM Metal Push-to-Connect Fittings | Tube to Tube Fittings | 10 mm Tube Size | 58 mm Length | 37.50 mm Width | Tee | Electroless Nickel-Plated Brass | Pack of 10

Save $18.81 Save $18.81
$206.90
$206.90 - $206.90
$206.90
$188.09
$188.09 - $188.09
$188.09

by Parker Hannifin
Prestolok PLM Metal Push-to-Connect Fittings:164PLM Union Tee Metric Tube

Package Quantity: 10 Units

Specifications for Variant SKU: 164PLM-10M Parker | 10 |
Series: 164PLM Series
Shape (Orientation): Tee
Material(s): Nickel-Plated Brass
Special Properties: Food Grade, Corrosion Resistance, Chemical Resistance, Abrasion Resistance, Silicone Free
Product Features:
  • High phosphorous, FDA-compliant, chemical resistant, nickel-plated collet and body
  • FKM seal
  • Chemical, corrosion, and abrasion resistance
  • NPT, BSPT, BSPP, and metric threads
  • Silicone Free
Markets:
  • Industrial
  • Chemical
  • Life Science
  • Semi-conductors
  • Automation
  • Food Processing
Compatible Media:
  • Food Fluids
  • Harsh Detergents
  • Cleaning In Cold/Hot Water
  • Steam
  • Oils
  • Compressed Air
  • Inert Gases
Pressure Range: Up to 435 psi (30 bar)
290 psi (19.9 bar) for 169PLM
Vacuum Rating: 28" Hg
Temperature Range: -13° to +302° F (-25° to +150° C)
Compatible Tubing:
  • Polyethylene
  • Polyurethane 95 Durometer Shore A*
  • Nylon
  • FEP
Part Number Tube Size H L
164PLM-4M 4 mm 23.00 mm 18.00 mm
164PLM-6M 6 mm 28.00 mm 21.50 mm
164PLM-8M 8 mm 31.00 mm 23.50 mm
164PLM-10M 10 mm 37.50 mm 29.00 mm
164PLM-12M 12 mm 40.50 mm 31.00 mm
164PLM-14M 14 mm 45.00 mm 34.00 mm
