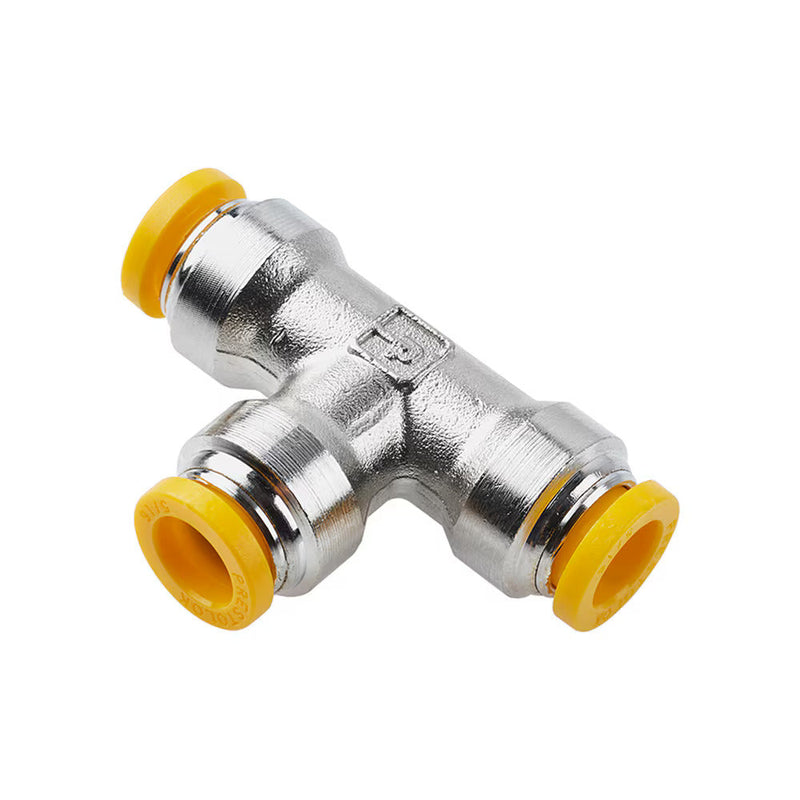

164PLP-10M by Parker | Prestolok PLP Push-to-Connect Fittings | Threaded Fitting | 10mm Union Tube Size x 10mm Union Tube Size x 10mm Union Tube Size | 24.90mm Length | 7.137mm Flow Dia. | Tee | Nickel-Plated Brass | Pack of 10

Save $19.24

$124.17

$124.17 - $124.17

$124.17

$104.93

$104.93 - $104.93

$104.93

by Parker Hannifin
Push-to-Connect Fittings:164PLP Union Tee – Metric

Package Quantity: 10 Units

Specifications for Variant SKU: 164PLP-10M Parker \| 10 \|
Series:	164PLP Series
Shape (Orientation):	Tee
Material(s):	Nickel-Plated Brass, Stainless Steel, PVDF
Seal Material(s):	Buna-N/Nitrile Rubber
Special Properties:	Corrosion Resistance, Flame Resistant Release Button

Product Features:	Stainless steel grab ring Nickel-plated brass body Nitrile seal Flame resistant release button Corrosion resistance Inch and metric tube connections NPT, BSPP, BSPT, and metric threads Meets UL94 V-0 Flame Resistance Standard
Markets:	Industrial Automotive Climate Control Welding Robotic Welding
Compatible Media:	Compressed Air Inert Gases Vacuum
Pressure Range:	Up to 300 PSI (20.6 bar) depending on tubing
Temperature Range:	0° to +200° F (-17.7° to 93.3° C)
Vacuum Rating:	28" Hg
Compatible Tubing:	95FR Microweld Polyethylene Polypropylene Semi Rigid Nylon Rigid Nylon Polyurethane 95 Durometer Shore A


Part Number	Tube Size	L	Flow Diameter (D)
164PLP-4M	4 mm	19.40 mm	3.175 mm
164PLP-6M	6 mm	20.47 mm	4.775 mm
164PLP-8M	8 mm	24.58 mm	6.350 mm
164PLP-10M	10 mm	24.90 mm	7.137 mm
164PLP-12M	12 mm	28.77 mm	9.525 mm

Parker Fluid System Connectors Division

Parker Fluid System Connectors Division delivers quality and service from design to delivery. Their engineers leverage advanced technology to create prototypes, refine designs, and improve manufacturing efficiencies, offering tailored solutions. ISO 9001 certified and focused on sustainability, they utilize recyclable materials and a brass chip recycling program to protect the environment and control costs. Flexible assembly, packaging, and shipping systems support diverse needs, including kitting and custom labeling, ensuring high-quality products and outstanding customer support.
