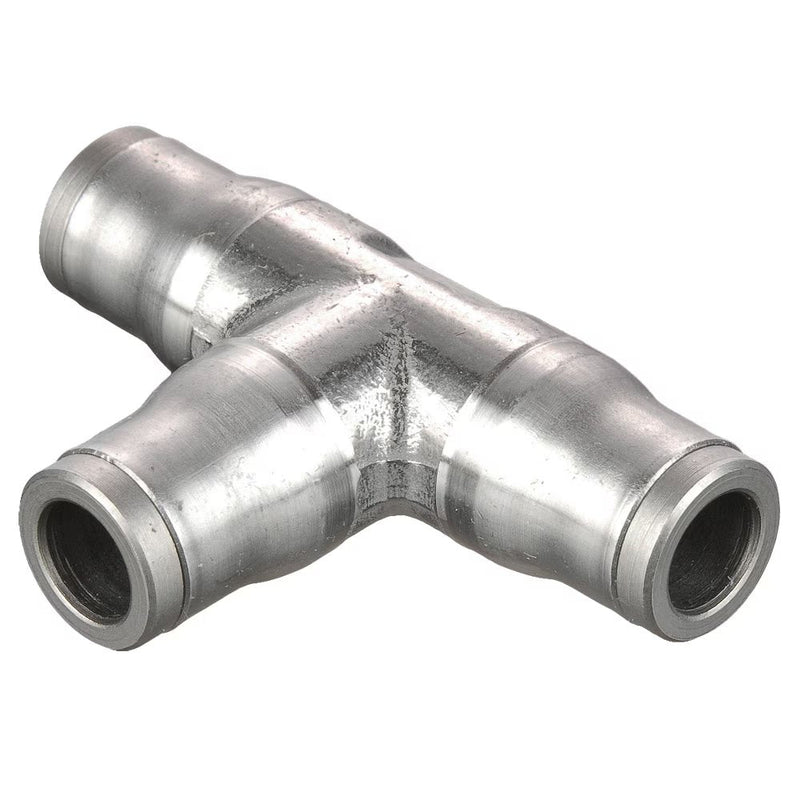

164PLS-10M by Parker | Prestolok PLS Push-to-Connect Fittings | Tube to Tube Fittings | 10 mm Tube Size | 62 mm Length | 39 mm Width | Tee | Stainless Steel | Pack of 2

164PLS-10M by Parker | Prestolok PLS Push-to-Connect Fittings | Tube to Tube Fittings | 10 mm Tube Size | 62 mm Length | 39 mm Width | Tee | Stainless Steel | Pack of 2

Save $38.38 Save $38.38
$330.57
$330.57 - $330.57
$330.57
$292.19
$292.19 - $292.19
$292.19

by Parker Hannifin
Prestolok PLS Stainless Steel Push-to-Connect Fittings:164PLS Union Tee - Metric Tube

Package Quantity: 2 Units

Specifications for Variant SKU: 164PLS-10M Parker | 2 |
Series: 164PLS Series
Shape (Orientation): Tee
Material(s): Stainless Steel
Special Properties: Food Grade, Corrosion Resistance, Chemical Resistance, Abrasion Resistance, Silicone Free
Product Features:
  • Stainless steel 316L collet
  • Stainless steel 316L body
  • FKM seal
  • Stainless steel 316L backup washer
  • Chemical, corrosion, and abrasion resistance
  • Hygienic design reduces retention zones for
  • Easy cleaning
  • NPT, BSPT, BSPP, and metric threads
  • Silicone Free
Markets:
  • Petrochemical
  • Life Science
  • Pulp and Paper
  • Food Processing
  • Wash Down
Compatible Media:
  • Food Fluids
  • Chemicals
  • Cleaning Agents
  • Compressed Air
  • Inert Gases
Pressure Range: Up to 435 psi (30 bar)
290 psi (19.9 bar) for 169PLS
Vacuum Rating: 28" Hg
Temperature Range: -13° to +302° F (-25° to +150° C)
Compatible Tubing:
  • Semi-rigid nylon
  • Polyethylene
  • Polyurethane 95 Durometer Shore A
  • Stainless Steel (grooved)
  • Copper (grooved)
  • FEP
Part Number Tube Size H L2
164PLS-4M 4 mm 24 mm 19 mm
164PLS-6M 6 mm 30 mm 24 mm
164PLS-8M 8 mm 32 mm 25 mm
164PLS-10M 10 mm 39 mm 31 mm
164PLS-12M 12 mm 43 mm 33 mm
