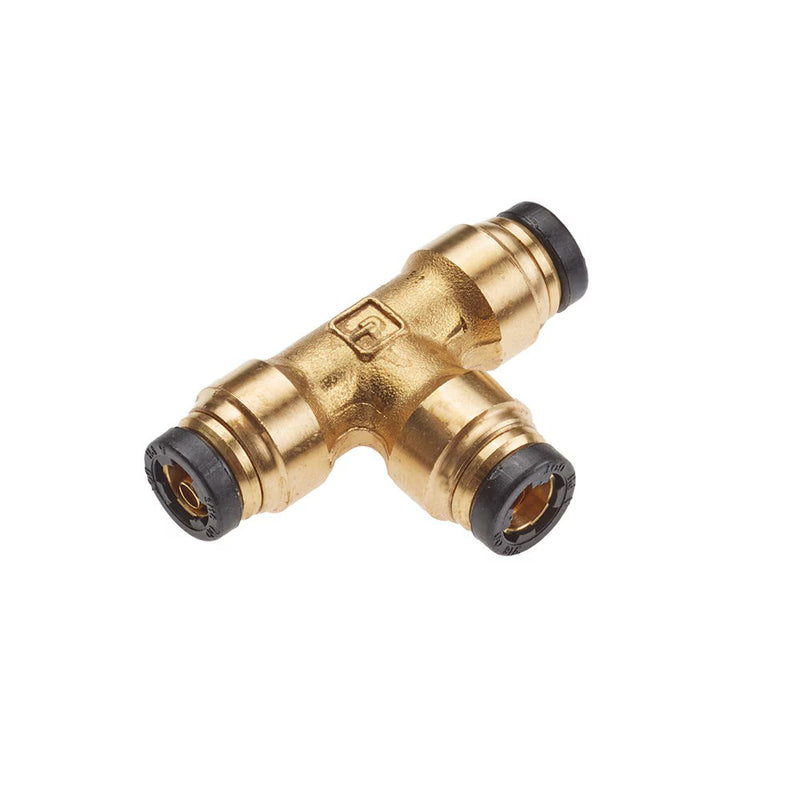

164PTC-10 by Parker | Threaded Fitting | Union | 5/8" Push-to-Connect | 3.14" Length | Tee | Brass | Pack of 5

Save $137.15

$342.88

$342.88 - $342.88

$342.88

$205.73

$205.73 - $205.73

$205.73

by Parker Hannifin
PTC Brass Fittings:Union Tee 164PTC

Package Quantity: 5 Units

Specifications for Variant SKU: 164PTC-10 Parker \| 5 \|
Series:	164PTC Series
Shape (Orientation):	Tee
Material(s):	Brass, Stainless Steel
Seal Material(s):	Buna-N/Nitrile Rubber

Product Features:	Brass Collet Buna N O-ring Stainless Steel Tube Support Meets D.O.T. FMVSS571.106 Meets SAE J2494-3 Meets SAE J2494 & SAE J2494-3
Markets:	Heavy Duty Truck Trailer Mobile
Applications:	Air Brakes Air Tanks Air Ride Sliders Tire Inflation Primary & Secondary Air Lines
Specification:
Pressure Range:	Up to 250 PSI (17.2 bar)
Temperature Range:	-50° to +230° F (-45.5° to +100° C)
Temperature Range (3/16" & 5/32 only):	-40 to +200F (-40 to +93.3C)
Compatible Tubing:	SAE J844 Type A & B nylon tubing


Part Number	Tube Size 1	Tube Size 2	L1	L2
164PTC-5/32*	5/32"	5/32"	.77"	.77"
164PTC-3*	3/16"	3/16"	.77"	.77"
164PTC-4	1/4"	1/4"	.85"	.85"
164PTC-6	3/8"	3/8"	.81"	.81"
164PTC-6-6-4	3/8"	1/4"	1.10"	.90"
164PTC-8	1/2"	1/2"	1.31"	1.31"
164PTC-10	5/8"	5/8"	1.57"	1.57"

*5/32 and 3/16 with black button
