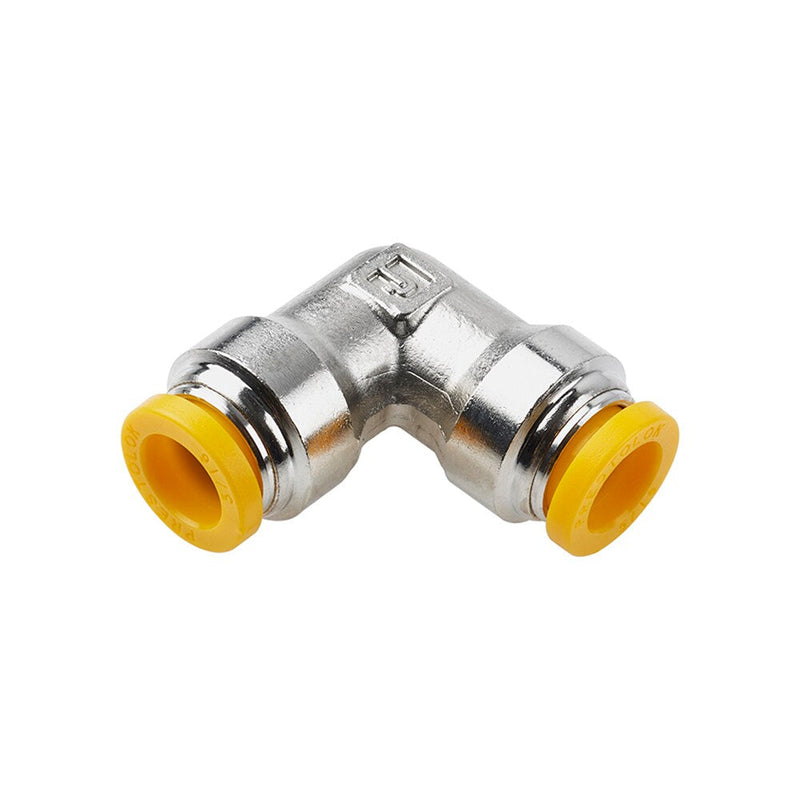

165PLP-12M by Parker | Prestolok PLP Push-to-Connect Fittings | Tube to Tube Fitting | 12mm Union Tube Size | 27.13mm Length | 9.525mm Flow Dia. | 90° Elbow | Nickel-Plated Brass | Pack of 10

Save $21.58

$153.18

$153.18 - $153.18

$153.18

$131.60

$131.60 - $131.60

$131.60

by Parker Hannifin
Push-to-Connect Fittings:165PLP Union Elbow – Metric

Package Quantity: 10 Units

Specifications for Variant SKU: 165PLP-12M Parker \| 10 \|
Series:	165PLP Series
Shape (Orientation):	90° Elbow
Material(s):	Nickel-Plated Brass, Stainless Steel, PVDF
Seal Material(s):	Buna-N/Nitrile Rubber
Special Properties:	Corrosion Resistance, Flame Resistant Release Button

Product Features:	Stainless steel grab ring Nickel-plated brass body Nitrile seal Flame resistant release button Corrosion resistance Inch and metric tube connections NPT, BSPP, BSPT, and metric threads Meets UL94 V-0 Flame Resistance Standard
Markets:	Industrial Automotive Climate Control Welding Robotic Welding
Compatible Media:	Compressed Air Inert Gases Vacuum
Pressure Range:	Up to 300 PSI (20.6 bar) depending on tubing
Temperature Range:	0° to +200° F (-17.7° to 93.3° C)
Vacuum Rating:	28" Hg
Compatible Tubing:	95FR Microweld Polyethylene Polypropylene Semi Rigid Nylon Rigid Nylon Polyurethane 95 Durometer Shore A


Part Number	Tube Size	L	Flow Diameter (D)
165PLP-4M	4 mm	19.05 mm	3.175 mm
165PLP-6M	6 mm	20.14 mm	4.775 mm
165PLP-8M	8 mm	23.75 mm	7.925 mm
165PLP-10M	10 mm	23.75 mm	7.925 mm
165PLP-12M	12 mm	27.13 mm	9.525 mm
