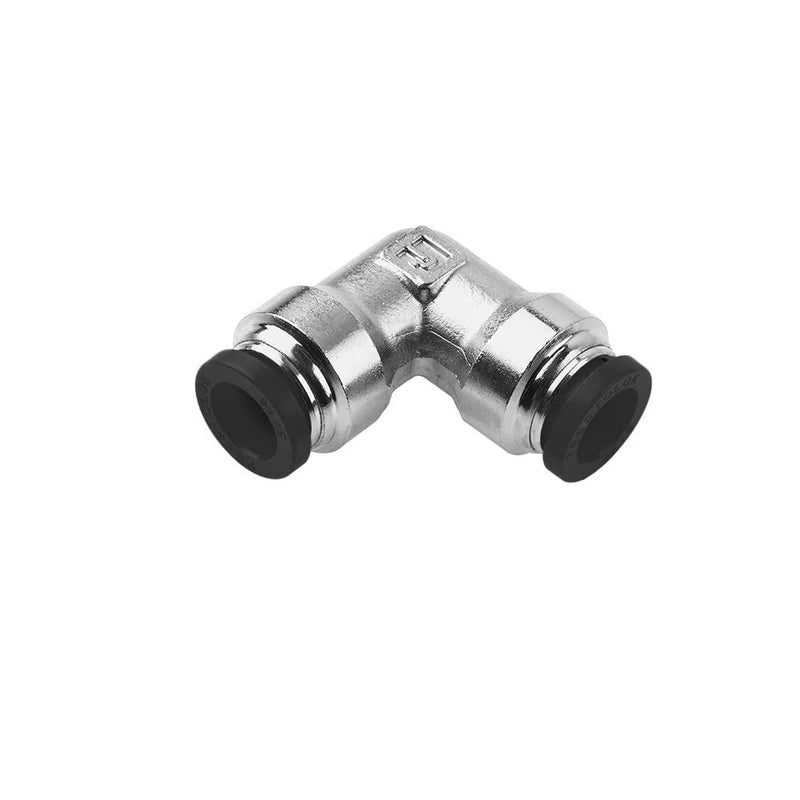

165PLP-5 by Parker | Prestolok PLP Push-to-Connect Fittings | Tube to Tube Fitting | 5/16" Union Tube Size | .97" Length | .250" Flow Dia. | 90° Elbow | Nickel-Plated Brass | Pack of 10

165PLP-5 by Parker | Prestolok PLP Push-to-Connect Fittings | Tube to Tube Fitting | 5/16" Union Tube Size | .97" Length | .250" Flow Dia. | 90° Elbow | Nickel-Plated Brass | Pack of 10

Save $8.74 Save $8.74
$96.18
$96.18 - $96.18
$96.18
$87.44
$87.44 - $87.44
$87.44

by Parker Hannifin
Push-to-Connect Fittings:165PLP Union Elbow – Inch

Package Quantity: 10 Units

Specifications for Variant SKU: 165PLP-5 Parker | 10 |
Series: 165PLP Series
Shape (Orientation): 90° Elbow
Material(s): Nickel-Plated Brass, Stainless Steel, PVDF
Seal Material(s): Buna-N/Nitrile Rubber
Special Properties: Corrosion Resistance, Flame Resistant Release Button
Product Features:
  • Stainless steel grab ring
  • Nickel-plated brass body
  • Nitrile seal
  • Flame resistant release button
  • Corrosion resistance
  • Inch and metric tube connections
  • NPT, BSPP, BSPT, and metric threads
  • Meets UL94 V-0 Flame Resistance Standard
Markets:
  • Industrial
  • Automotive
  • Climate Control
  • Welding
  • Robotic Welding
Compatible Media:
  • Compressed Air
  • Inert Gases
  • Vacuum
Pressure Range: Up to 300 PSI (20.6 bar) depending on tubing
Temperature Range: 0° to +200° F (-17.7° to 93.3° C)
Vacuum Rating: 28" Hg
Compatible Tubing:
  • 95FR Microweld
  • Polyethylene
  • Polypropylene
  • Semi Rigid Nylon
  • Rigid Nylon
  • Polyurethane 95 Durometer Shore A
Part Number Tube Size L Flow Diameter
165PLP-2 1/8" .74" .094
165PLP-5/32 5/32" .77 .125"
165PLP-4 1/4" .85 .188"
165PLP-5 5/16" .97 .250"
165PLP-6 3/8" 1.01 .312"
165PLP-8 1/2" 1.15 .375"
