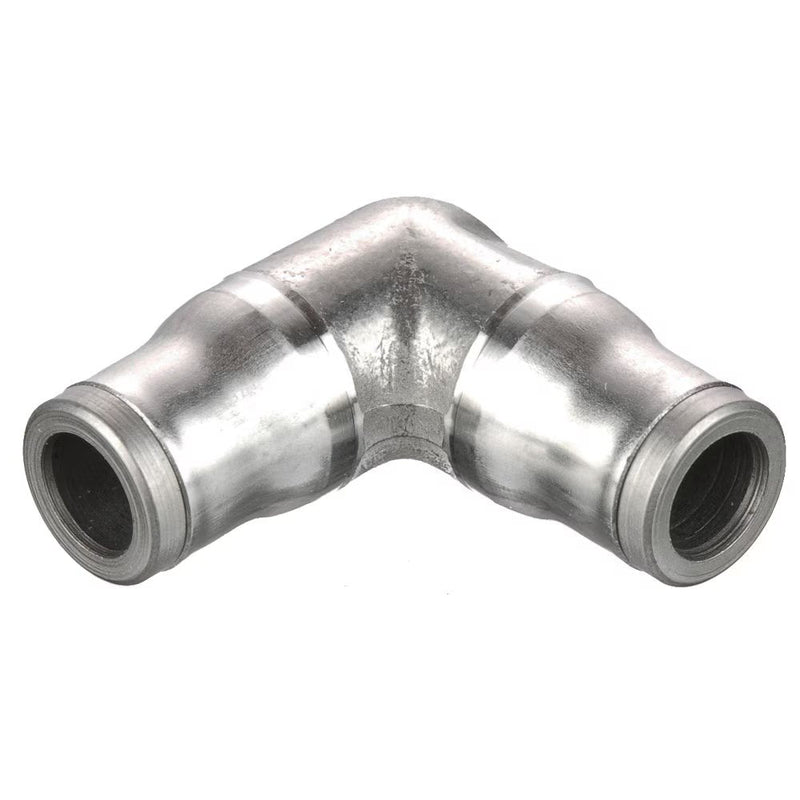

165PLS-10M by Parker | Prestolok PLS Push-to-Connect Fittings | Threaded Union Fitting | 10 mm Tube Size | 39.00 mm Length | 90° Elbow | Stainless Steel | Pack of 2

165PLS-10M by Parker | Prestolok PLS Push-to-Connect Fittings | Threaded Union Fitting | 10 mm Tube Size | 39.00 mm Length | 90° Elbow | Stainless Steel | Pack of 2

Save $121.09 Save $121.09
$302.72
$302.72 - $302.72
$302.72
$181.63
$181.63 - $181.63
$181.63

by Parker Hannifin
Prestolok PLS Stainless Steel Push-to-Connect Fittings:165PLS Union Elbow - Metric Tube

Package Quantity: 2 Units

Specifications for Variant SKU: 165PLS-10M Parker | 2 |
Series: 165PLS Series
Shape (Orientation): 90° Elbow
Material(s): Stainless Steel
Special Properties: Food Grade, Corrosion Resistance, Chemical Resistance, Abrasion Resistance, Silicone Free
Product Features:
  • Stainless steel 316L collet
  • Stainless steel 316L body
  • FKM seal
  • Stainless steel 316L backup washer
  • Chemical, corrosion, and abrasion resistance
  • Hygienic design reduces retention zones for
  • Easy cleaning
  • NPT, BSPT, BSPP, and metric threads
  • Silicone Free
Markets:
  • Petrochemical
  • Life Science
  • Pulp and Paper
  • Food Processing
  • Wash Down
Compatible Media:
  • Food Fluids
  • Chemicals
  • Cleaning Agents
  • Compressed Air
  • Inert Gases
Pressure Range: Up to 435 psi (30 bar)
290 psi (19.9 bar) for 169PLS
Vacuum Rating: 28" Hg
Temperature Range: -13° to +302° F (-25° to +150° C)
Compatible Tubing:
  • Semi-rigid nylon
  • Polyethylene
  • Polyurethane 95 Durometer Shore A
  • Stainless Steel (grooved)
  • Copper (grooved)
  • FEP
Part Number Tube Size L
165PLS-4M 4 mm 24.00 mm
165PLS-6M 6 mm 30.00 mm
165PLS-8M 8 mm 32.20 mm
165PLS-10M 10 mm 39.00 mm
165PLS-12M 12 mm 43.00 mm
