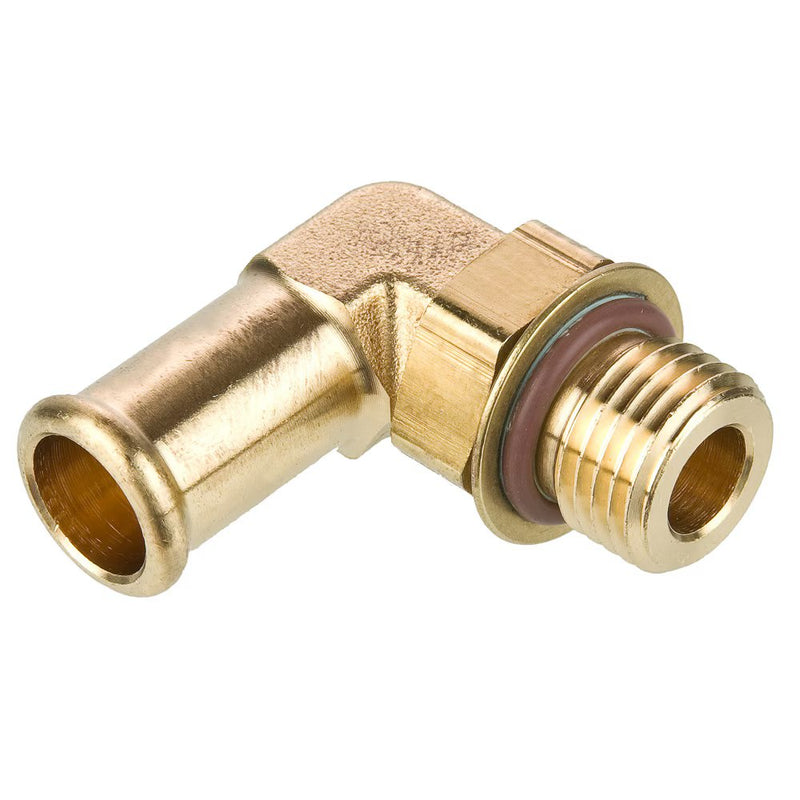

1695HB-10-10 by Parker | Hose Barb Fittings | 5/8" Beaded Hose Barb x 7/8" SAE Thread | 1" Hex | 90° Elbow | Brass | Pack of 5

1695HB-10-10 by Parker | Hose Barb Fittings | 5/8" Beaded Hose Barb x 7/8" SAE Thread | 1" Hex | 90° Elbow | Brass | Pack of 5

Save $16.20 Save $16.20
$178.15
$178.15 - $178.15
$178.15
$161.95
$161.95 - $161.95
$161.95

by Parker Hannifin
Hose Barb Fittings:Beaded Hose Barb Elbow to SAE Straight Thread 1695HB

Package Quantity: 5 Units

Specifications for Variant SKU: 1695HB-10-10 Parker | 5 |
Series: 1695HB Series
Shape (Orientation): 90° Elbow
Material(s): Brass
Seal Material(s): Fluorocarbon
Product Features:
  • All brass construction
  • Fluorocarbon O-rings
  • NPTF, SAE straight thread, metric thread ends
  • Reusable
  • Clamp required
Markets:
  • Industrial
  • Construction
  • Heavy duty truck
  • Mobile
Applications:
  • Air Lines
  • Water Line
  • Cooling Lines
Specification:
Temperature Range: -40° to +160° F (-40° to +71.1° C)
Pressure Range: Up to 150 PSI (10.3 bar)
Part Number Hose Size Straight Thread Hex L M N D
1695HB-6-4 3/8" 7/16"-20 9/16" 1.09" .78" 1.10" .18"
1695HB-8-6 1/2" 1/2"-18 9/16" 1.10" .78" 1.11" .30"
1695HB-8-8 1/2" 3/4"-16 7/8" 1.28" .78" 1.42" .40"
1695HB-10-8 5/8" 3/4"-16 7/8" 1.47" .88" 1.47" .40"
1695HB-10-10 5/8" 7/8"-14 1" 1.41" .88" 1.60" .50"
1695HB-12-8 3/4" 3/4"-16 7/8" 1.47" .97" 1.47" .40"
1695HB-12-10 3/4" 7/8"-14 1" 1.60" .97" 1.62" .50"
1695HB-12-12 3/4" 1-1/16"-12 1" 1.60" .97" 1.64" .62"
1695HB-16-12 1" 1-1/16"-12 1-1/4" 1.60" .97" 1.75" .60"

Note: Fluorocarbon o-ring is standard
