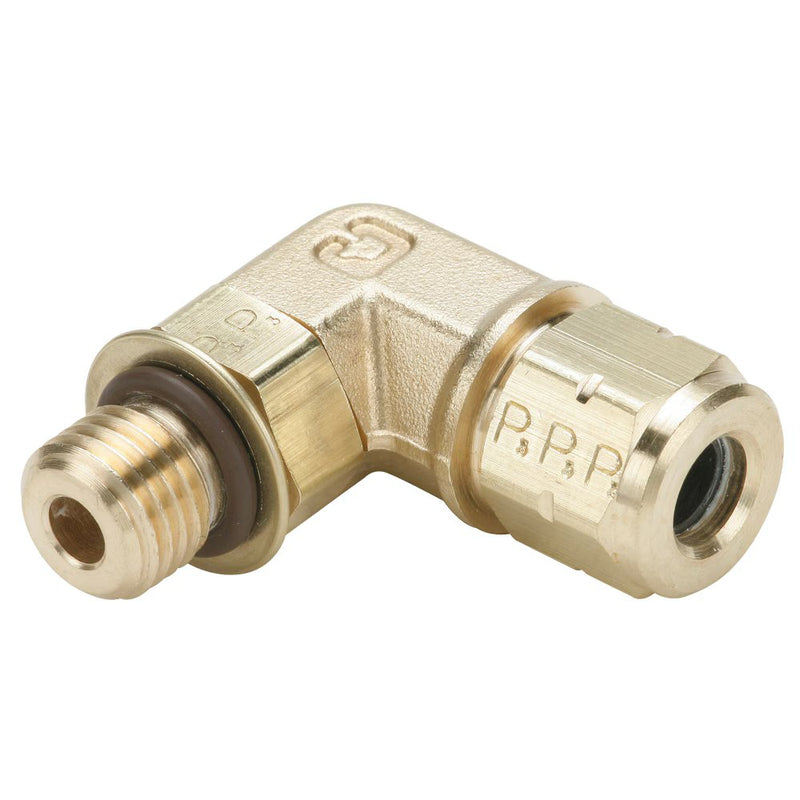

1695VLV-12-12 by Parker | Vibra-Lok Fittings | 3/4" Tube Size x 1-1/4" Male Thread | 1-1/4" Hex Nut | 1" Body Hex | 1-1/4" Jam Jut Hex | 90° Elbow | Brass

1695VLV-12-12 by Parker | Vibra-Lok Fittings | 3/4" Tube Size x 1-1/4" Male Thread | 1-1/4" Hex Nut | 1" Body Hex | 1-1/4" Jam Jut Hex | 90° Elbow | Brass

Save $24.08 Save $24.08
$60.20
$60.20 - $60.20
$60.20
$36.12
$36.12 - $36.12
$36.12

by Parker Hannifin
Vibra-Lok Fittings:Male Elbow 1695VLV
Specifications for Variant SKU: 1695VLV-12-12 Parker
Brand: Vibra-Lok
Series: 1695VLV Series
Shape (Orientation): 90° Elbow
Material(s): Brass
Special Properties: Fuel Grade, Vibration Resistance
Product Features:
  • Brass Body
  • Sleeves in Buna N and Fluorocarbon
  • NPTF and SAE J1926 Straight Threads are Standard
  • Excellent Vibration Resistance
Markets:
  • Heavy Duty Truck
  • Trailer
  • Mobile
Applications:
  • Oil
  • Fuel
  • Coolant Lines on engines
Specification:
Pressure Range: Dependent on condition and tube size, refer to pressure chart
Temperature Range: -15° to +450° F (-26.1° to +232.2° C) with Fluorocarbon Sleeve
-30° to +275° F (-34.4° to +135° C) with Buna N Sleeve
Compatible Tubing:
  • Copper
  • Aluminum
  • Steel (Bundy)
  • Stainless Steel
  • Glass
Part Number Tube Size Straight Thread Nut Hex Body Hex Jam Nut Hex L M N1 N2 D
1695VLV-4-4 1/4" 7/16"-20 9/16" 9/16" 9/16" 1.15" .84" 1.07" .71" .18"
1695VLV-8-8 1/2" 3/4"-16 15/16" 3/4" 7/8" 1.54" 1.06" 1.44" .89" .39"
1695VLV-12-12 3/4" 1-1/16"-12 1-1/4" 1" 1-1/4" 2.04" 1.28" 1.82" 1.17" .62"

Note: Fluorocarbon seal & o-ring standard
