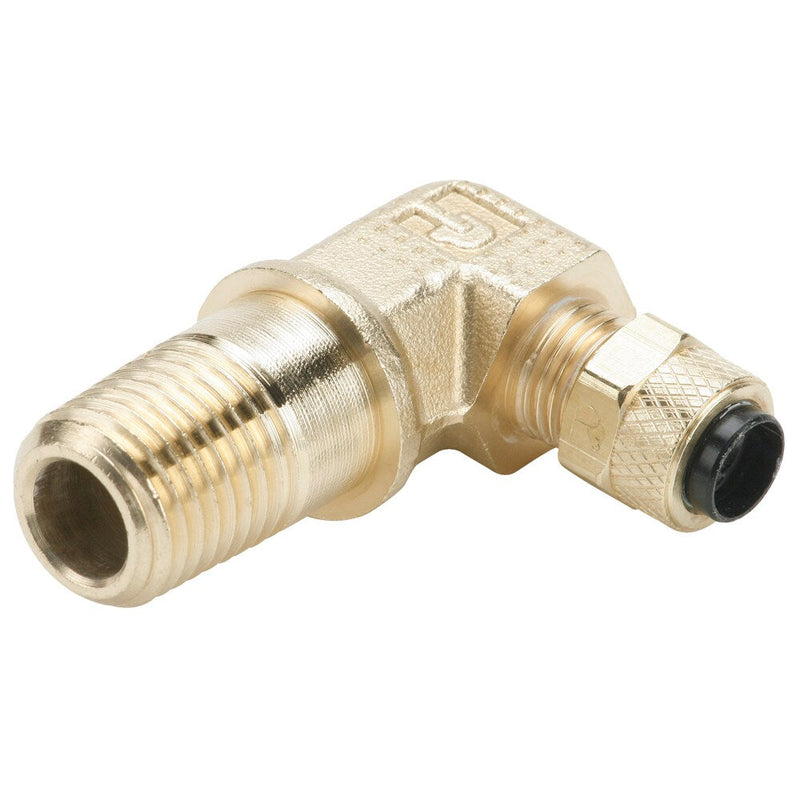

169LP-4-4 by Parker | Poly-Tite Fittings | 1/4" Tube Size x 1/4" Male Pipe Thread x 3/8" Thread | 90° Long Elbow | Brass | Pack of 10

Save $140.11

$350.28

$350.28 - $350.28

$350.28

$210.17

$210.17 - $210.17

$210.17

by Parker Hannifin
Poly-Tite Fittings:Long Male Elbow 169LP

Package Quantity: 10 Units

Specifications for Variant SKU: 169LP-4-4 Parker \| 10 \|
Shape (Orientation):	90° Elbow
Material(s):	Brass, Acetal Copolymer
Special Properties:	Long, Silicone Free

Specification:
Product Features:	Self aligning captive sleeve Built-in tube support Knurled nuts for hand tightening Plastic and brass sleeves available Chrome plated and stainless steel side latch couplers available
Markets:	Dental Packaging Machine Tools Car Wash Printing
Applications:	Pneumatic Systems Water Lines Dental Equipment
Pressure Range:	Up to 150 PSI (10.3 bar)
Temperature Range:	0° to +150° F (-17.7° to +65.5° C)
O-Rings:	Buna N on chrome plated couplers Fluorocarbon on Stainless Steel couplers
Compatible Tubing:	Polyethylene Nylon Polypropylene Vinyl


Part Number	Tube Size	Pipe Thread	Straight Thread	L	M	N	Flow Diameter (F)
169LP-4-4	1/4"	1/4"	3/8"-24	.90"	.79"	1.38"	.125"
