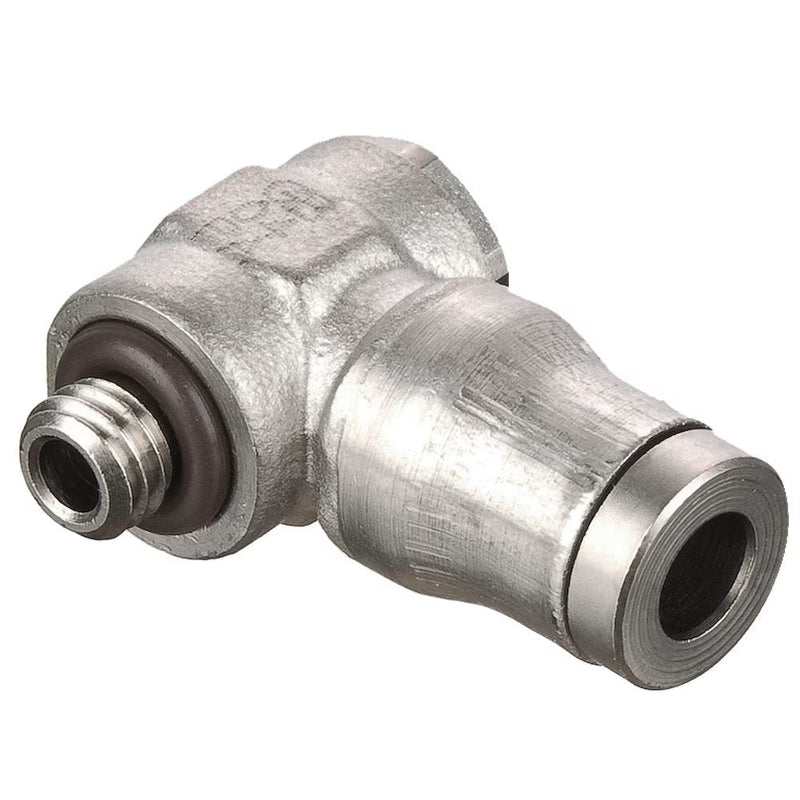

169PLMBJ-4M-2G by Parker | Prestolok PLM Metal Push-to-Connect Fittings | Modular Fittings | 30.50 mm Length | Electroless Nickel-Plated Brass | Pack of 10

169PLMBJ-4M-2G by Parker | Prestolok PLM Metal Push-to-Connect Fittings | Modular Fittings | 4mm Banjo x 1/8" Male BSPP Threads | 30.50mm Length | Electroless Nickel-Plated Brass | Pack of 10

Save $95.84 Save $95.84
$239.60
$239.60 - $239.60
$239.60
$143.76
$143.76 - $143.76
$143.76

by Parker Hannifin
Prestolok PLM Metal Push-to-Connect Fittings:169PLMBJ Single Banjo Metric Tube to BSPP or M5

Package Quantity: 10 Units

Specifications for Variant SKU: 169PLMBJ-4M-2G Parker | 10 |
Series: 169PLMBJ Series
Material(s): Nickel-Plated Brass
Special Properties: Food Grade, Corrosion Resistance, Chemical Resistance, Abrasion Resistance, Silicone Free
Product Features:
  • High phosphorous, FDA-compliant, chemical resistant, nickel-plated collet and body
  • FKM seal
  • Chemical, corrosion, and abrasion resistance
  • NPT, BSPT, BSPP, and metric threads
  • Silicone Free
Markets:
  • Industrial
  • Chemical
  • Life Science
  • Semi-conductors
  • Automation
  • Food Processing
Compatible Media:
  • Food Fluids
  • Harsh Detergents
  • Cleaning In Cold/Hot Water
  • Steam
  • Oils
  • Compressed Air
  • Inert Gases
Pressure Range: Up to 435 psi (30 bar)
290 psi (19.9 bar) for 169PLM
Vacuum Rating: 28" Hg
Temperature Range: -13° to +302° F (-25° to +150° C)
Compatible Tubing:
  • Polyethylene
  • Polyurethane 95 Durometer Shore A*
  • Nylon
  • FEP
Part Number Tube Size BSPP / M5 F1 F2 H H1 L1 L2
169PLMBJ-4M-M5 4 mm M5X0.8 10 mm 8 mm 14.50 mm 6.50 mm 6.00 mm 18.50 mm
169PLMBJ-4M-2G 4 mm G1/8" 17 mm 14 mm 23.00 mm 9.50 mm 10.00 mm 20.50 mm
169PLMBJ-6M-M5 6 mm M5X0.8 10 mm 8 mm 15.00 mm 7.00 mm 6.00 mm 22.50 mm
169PLMBJ-6M-2G 6 mm G1/8" 17 mm 14 mm 23.00 mm 9.50 mm 10.00 mm 23.50 mm
169PLMBJ-6M-4G 6 mm G1/4" 22 mm 14 mm 22.00 mm 9.00 mm 13.00 mm 25.50 mm
169PLMBJ-8M-2G 8 mm G1/8" 17 mm 14 mm 23.00 mm 9.50 mm 10.00 mm 26.00 mm
169PLMBJ-8M-4G 8 mm G1/4" 22 mm 17 mm 22.00 mm 9.00 mm 13.00 mm 27.50 mm
169PLMBJ-10M-6G 10 mm G3/8" 22 mm 22 mm 33.00 mm 33.00 mm 13.00 mm 32.00 mm
