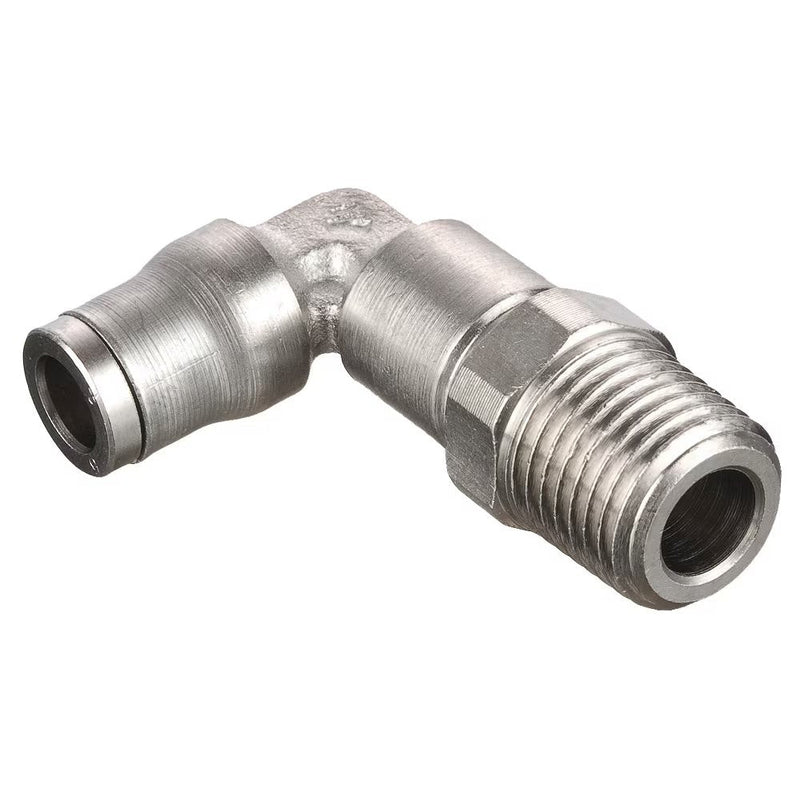

169PLMX-8M-4R by Parker | Prestolok PLM Metal Push-to-Connect Fittings | Threaded Fitting | 8 mm Tube Size x 1/4" Male BSPT Threads | 15.00 mm Height | 90° Long Elbow | Electroless Nickel-Plated Brass | Pack of 10

169PLMX-8M-4R by Parker | Prestolok PLM Metal Push-to-Connect Fittings | Threaded Fitting | 8 mm Tube Size x 1/4" Male BSPT Threads | 15.00 mm Height | 90° Long Elbow | Electroless Nickel-Plated Brass | Pack of 10

Save $24.39 Save $24.39
$187.32
$187.32 - $187.32
$187.32
$162.93
$162.93 - $162.93
$162.93

by Parker Hannifin
Prestolok PLM Metal Push-to-Connect Fittings:169PLMX Extended Male Elbow Metric Tube to BSPT

Package Quantity: 10 Units

Specifications for Variant SKU: 169PLMX-8M-4R Parker | 10 |
Series: 169PLMX Series
Shape (Orientation): 90° Elbow
Material(s): Nickel-Plated Brass
Special Properties: Food Grade, Corrosion Resistance, Chemical Resistance, Abrasion Resistance, Long, Silicone Free
Product Features:
  • High phosphorous, FDA-compliant, chemical resistant, nickel-plated collet and body
  • FKM seal
  • Chemical, corrosion, and abrasion resistance
  • NPT, BSPT, BSPP, and metric threads
  • Silicone Free
Markets:
  • Industrial
  • Chemical
  • Life Science
  • Semi-conductors
  • Automation
  • Food Processing
Compatible Media:
  • Food Fluids
  • Harsh Detergents
  • Cleaning In Cold/Hot Water
  • Steam
  • Oils
  • Compressed Air
  • Inert Gases
Pressure Range: Up to 435 psi (30 bar)
290 psi (19.9 bar) for 169PLM
Vacuum Rating: 28" Hg
Temperature Range: -13° to +302° F (-25° to +150° C)
Compatible Tubing:
  • Polyethylene
  • Polyurethane 95 Durometer Shore A*
  • Nylon
  • FEP
Part Number Tube Size BSPT F H K L
169PLMX-4M-2R 4 mm 1/8" 10 mm 24.50 mm 11.00 mm 18.00 mm
169PLMX-6M-2R 6 mm 1/8" 13 mm 29.50 mm 14.00 mm 21.50 mm
169PLMX-6M-4R 6 mm 1/4" 14 mm 30.50 mm 15.00 mm 21.50 mm
169PLMX-8M-2R 8 mm 1/8" 14 mm 32.50 mm 15.00 mm 23.50 mm
169PLMX-8M-4R 8 mm 1/4" 14 mm 34.00 mm 15.00 mm 23.50 mm
169PLMX-10M-4R 10 mm 1/4" 18 mm 39.00 mm 19.00 mm 29.00 mm
