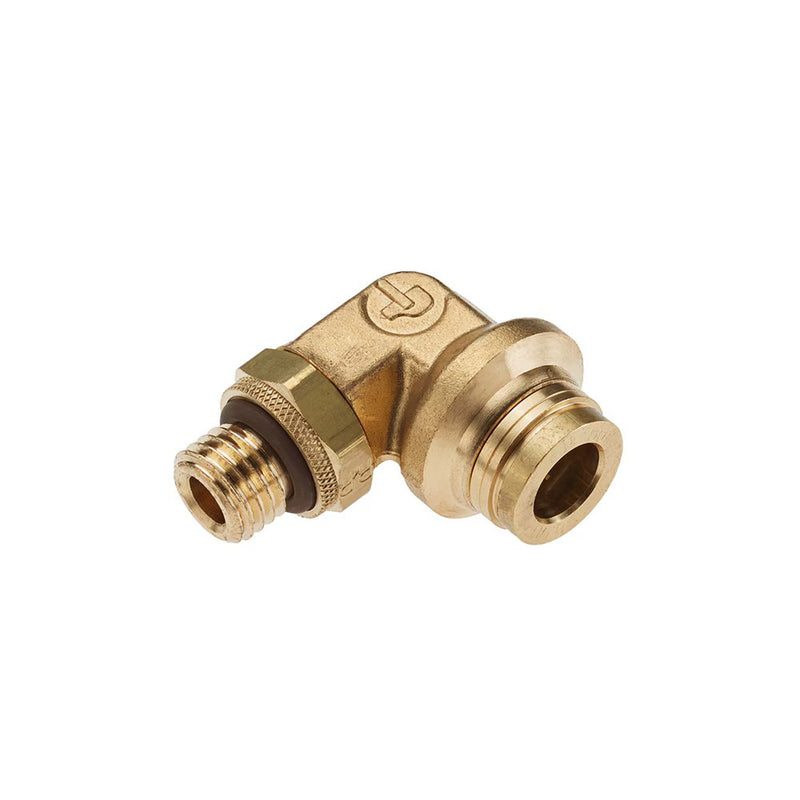

169PTCNS-8-M12 by Parker | Threaded Fitting | 1/2" Rigid Push-to-Connect x M12X1.5 Male M12 Thread | 17 mm Hex | 90° Elbow | Brass | Pack of 5

169PTCNS-8-M12 by Parker | Threaded Fitting | 1/2" Rigid Push-to-Connect x M12X1.5 Male M12 Thread | 17 mm Hex | 90° Elbow | Brass | Pack of 5

Save $160.80 Save $160.80
$402.00
$402.00 - $402.00
$402.00
$241.20
$241.20 - $241.20
$241.20

by Parker Hannifin
PTC Brass Fittings:Male Elbow to Metric Adjustable 169PTCNS

Package Quantity: 5 Units

Specifications for Variant SKU: 169PTCNS-8-M12 Parker | 5 |
Series: 169PTCNS Series
Shape (Orientation): 90° Elbow
Material(s): Brass, Stainless Steel
Seal Material(s): Buna-N/Nitrile Rubber
Product Features:
  • Brass Collet
  • Buna N O-ring
  • Stainless Steel Tube Support
  • Meets D.O.T. FMVSS571.106
  • Meets SAE J2494-3
  • Meets SAE J2494 & SAE J2494-3
Markets:
  • Heavy Duty Truck
  • Trailer
  • Mobile
Applications:
  • Air Brakes
  • Air Tanks
  • Air Ride
  • Sliders
  • Tire Inflation
  • Primary & Secondary Air Lines
Specification:
Pressure Range: Up to 250 PSI (17.2 bar)
Temperature Range: -50° to +230° F (-45.5° to +100° C)
Temperature Range (3/16" & 5/32 only): -40 to +200F (-40 to +93.3C)
Compatible Tubing:
  • SAE J844 Type A & B nylon tubing
Part Number Tube Size Metric Thread Wrench Flats Hex L M N
169PTCNS-4-M16 1/4" M16X1.5 11 mm 24 mm .88" 1.27" .34"
169PTCNS-4-M22 1/4" M22X1.5 19 mm 30 mm .94" 1.48" .40"
169PTCNS-6-M12 3/8" M12X1.5 16 mm 17 mm 1.00" 1.15" .37"
169PTCNS-6-M16 3/8" M16X1.5 19 mm 24 mm 1.18" 1.27" .31"
169PTCNS-8-M12 1/2" M12X1.5 16 mm 17 mm 1.20" 1.22" .37"
169PTCNS-8-M16 1/2" M16X1.5 16 mm 24 mm 1.20" 1.28" .41"
169PTCNS-8-M22 1/2" M22X1.5 19 mm 30 mm 1.20" 1.48" .41"
