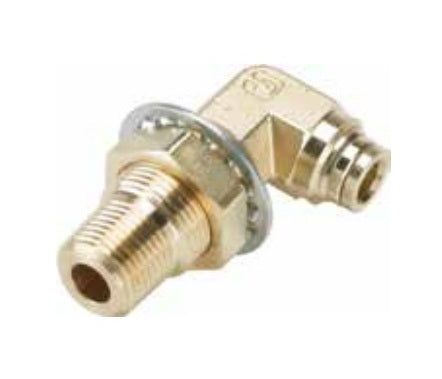

169PTCNSBH-6-8 by Parker | Bulkhead Union | 3/8" Push-to-Connect x 1/2" Male NPT Threads | 7/8" Hex B | 1-1/4 Hex C | 90° Elbow | Brass | Pack of 10

169PTCNSBH-6-8 by Parker | Bulkhead Union | 3/8" Push-to-Connect x 1/2" Male NPT Threads | 7/8" Hex B | 1-1/4 Hex C | 90° Elbow | Brass | Pack of 10

Save $194.40 Save $194.40
$486.00
$486.00 - $486.00
$486.00
$291.60
$291.60 - $291.60
$291.60

by Parker Hannifin
PTC Brass Fittings:Male Elbow Bulkhead 169PTCNSBH

Package Quantity: 10 Units

Specifications for Variant SKU: 169PTCNSBH-6-8 Parker | 10 |
Series: 169PTCNSBH Series
Shape (Orientation): 90° Elbow
Material(s): Brass, Stainless Steel
Seal Material(s): Buna-N/Nitrile Rubber
Product Features:
  • Brass Collet
  • Buna N O-ring
  • Stainless Steel Tube Support
  • Meets D.O.T. FMVSS571.106
  • Meets SAE J2494-3
  • Meets SAE J2494 & SAE J2494-3
Markets:
  • Heavy Duty Truck
  • Trailer
  • Mobile
Applications:
  • Air Brakes
  • Air Tanks
  • Air Ride
  • Sliders
  • Tire Inflation
  • Primary & Secondary Air Lines
Specification:
Pressure Range: Up to 250 PSI (17.2 bar)
Temperature Range: -50° to +230° F (-45.5° to +100° C)
Temperature Range (3/16" & 5/32 only): -40 to +200F (-40 to +93.3C)
Compatible Tubing:
  • SAE J844 Type A & B nylon tubing
Part Number Tube Size Pipe Thread L N Hex (B) Hex (C) Bulkhead Hole Diameter
169PTCNSBH-6-8 3/8" 1/2" 1.11" 2.50" 7/8" 1-1/4" 1"
169PTCNSBH-8-8 1/2" 1/2" 1.20" 2.50" 7/8" 1-1/4" 1"
