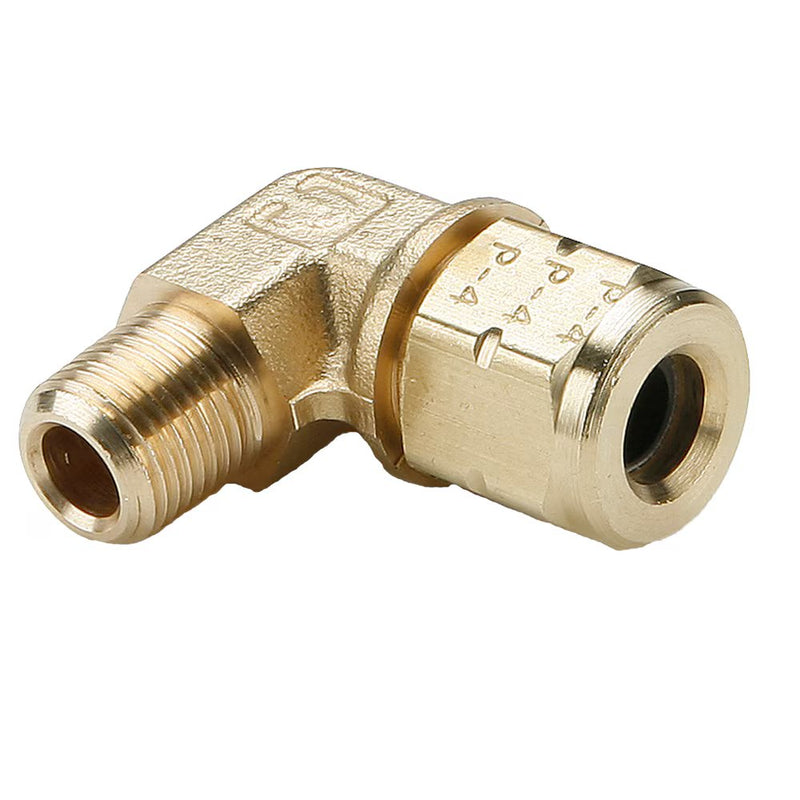

169VL-6-4 by Parker | Vibra-Lok Fittings | 3/8" Tube Size x 1/4" Male Pipe Thread | 90° Elbow | Brass | Pack of 10

169VL-6-4 by Parker | Vibra-Lok Fittings | 3/8" Tube Size x 1/4" Male Pipe Thread | 90° Elbow | Brass | Pack of 10

Save $98.27 Save $98.27
$245.67
$245.67 - $245.67
$245.67
$147.40
$147.40 - $147.40
$147.40

by Parker Hannifin
Vibra-Lok Fittings:Male Elbow 169VL

Package Quantity: 10 Units

Specifications for Variant SKU: 169VL-6-4 Parker | 10 |
Brand: Vibra-Lok
Series: 169VL Series
Shape (Orientation): 90° Elbow
Material(s): Brass
Special Properties: Fuel Grade, Vibration Resistance
Product Features:
  • Brass Body
  • Sleeves in Buna N and Fluorocarbon
  • NPTF and SAE J1926 Straight Threads are Standard
  • Excellent Vibration Resistance
Markets:
  • Heavy Duty Truck
  • Trailer
  • Mobile
Applications:
  • Oil
  • Fuel
  • Coolant Lines on engines
Specification:
Pressure Range: Dependent on condition and tube size, refer to pressure chart
Temperature Range: -15° to +450° F (-26.1° to +232.2° C) with Fluorocarbon Sleeve
-30° to +275° F (-34.4° to +135° C) with Buna N Sleeve
Compatible Tubing:
  • Copper
  • Aluminum
  • Steel (Bundy)
  • Stainless Steel
  • Glass
Part Number Tube Size Pipe Thread L M N Flow Diameter (D)
169VL-3-2 3/16" 1/8" .98" .69" .75" .156"
169VL-4-2 1/4" 1/8" 1.00" .69" .78" .188"
169VL-4-4 1/4" 1/4" 1.16" .84" 1.00" .188"
169VL-5-4 5/16" 1/4" 1.16" .81" 1.00" .252"
169VL-6-2 3/8" 1/8" 1.19" .84" .91" .235"
169VL-6-4 3/8" 1/4" 1.19" .84" 1.06" .312"
169VL-6-6 3/8" 3/8" 1.29" .94" 1.13" .312"
169VL-8-6 1/2" 3/8" 1.48" 1.00" 1.06" .406"
169VL-8-8 1/2" 1/2" 1.54" 1.06" 1.44" .406"
169VL-10-8 5/8" 1/2" 1.92" 1.28" 1.47" .565"
