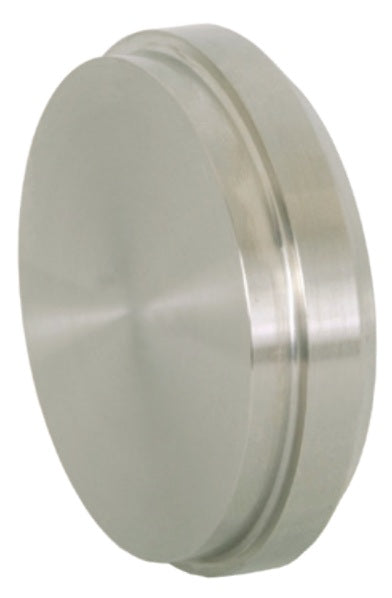

16A-G250 Dixon Valve 304 Stainless Steel Sanitary Plain Bevel Seat Solid End Cap - 2-1/2" Tube OD

16A-G250 Dixon Valve 304 Stainless Steel Sanitary Plain Bevel Seat Solid End Cap - 2-1/2" Tube OD

Save $13.71 Save $13.71
$34.27
$34.27 - $34.27
$34.27
$20.56
$20.56 - $20.56
$20.56

Dixon Sanitary Fittings Sanitary Bevel Seat End Cap - Plain Bevel Seat Solid End Cap

3-A Sanitary Standards for Sanitary Fittings, Number 63-03 (Authorization number 621).
Specifications for Variant SKU: 16A-G250 Dixon
Ends Configuration: 2-1/2in Plain Bevel Seat
Material(s): 304 Stainless Steel
304 Stainless Steel
Part Number		 316L Stainless Steel
Part Number		 Tube OD Dimensions
A B C
16A-G100 16A-R100 1" 1.31" 0.47" 1.16"
16A-G150 16A-R150 1-1/2" 1.84" 0.56" 1.68"
16A-G200 16A-R200 2" 2.38" 0.63" 2.19"
16A-G250 16A-R250 2-1/2" 2.91" 0.66" 2.71"
16A-G300 16A-R300 3" 3.44" 0.72" 3.22"
16A-G400 16A-R400 4" 4.50" 0.81" 4.26"
Dixon Valve & Coupling

Dixon Valve & Coupling

Dixon, founded in 1916, is a premier manufacturer and supplier of hose couplings, valves, dry disconnects, swivels, and other fluid transfer and control products. Our global reach includes a wide range of products for numerous industries including petroleum exploration, refining, transportation, chemical processing, food and beverage, steel, fire protection, construction, mining, and manufacturing.
