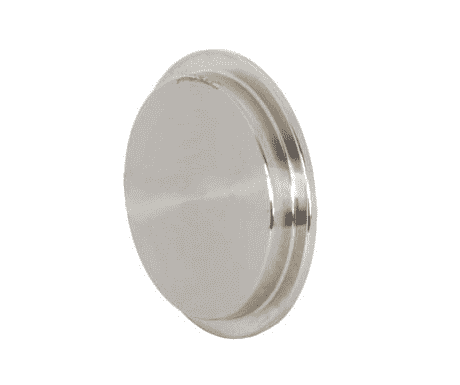

16AI-14I100 Dixon 304 Stainless Steel Sanitary Male I-line Solid End Cap - 1" Tube OD

16AI-14I100 Dixon Valve 304 Stainless Steel Sanitary Male I-line Solid End Cap - 1" Tube OD

$10.54 - $10.54
$10.54
$11.08
$11.08 - $11.08
$11.08

Dixon Sanitary Fittings Sanitary I-Line End Cap - Male I-line Solid End Cap - 304 Stainless Steel
Specifications for Variant SKU: 16AI-14I100 Dixon
Ends Configuration: 1in Male I-LINE
Material(s): 304 Stainless Steel
Features:
  • 3-A Sanitary Standards for Sanitary Fittings, Number 63-03 (Authorization number 621).
Part Number Tube OD Dimensions

Weight (Lbs.)
A B C
16AI-14I100 1" 0.500" 1.250" 1.990" 0.2800
16AI-14I150 1-1/2" 0.500" 1.740" 1.990" 0.3600
16AI-14I200 2" 0.590" 2.240" 2.640" 0.7200
16AI-14I250 2-1/2" 0.750" 2.740" 3.310" 1.4100
16AI-14I300 3" 0.750" 3.300" 3.870" 2.1000
16AI-14I400 4" 0.750" 4.300" 4.870" 3.3620
16AI-14I600 6" 0.750" 6.830" 7.500" 8.1550
Dixon Valve & Coupling

Dixon Valve & Coupling

Dixon, founded in 1916, is a premier manufacturer and supplier of hose couplings, valves, dry disconnects, swivels, and other fluid transfer and control products. Our global reach includes a wide range of products for numerous industries including petroleum exploration, refining, transportation, chemical processing, food and beverage, steel, fire protection, construction, mining, and manufacturing.
