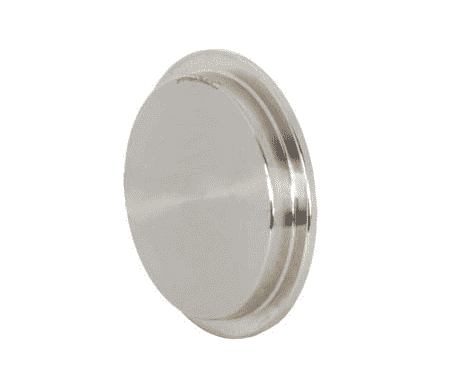

16AI-14I300R Dixon 316L Stainless Steel Sanitary Male I-line Solid End Cap - 3" Tube OD

16AI-14I300R Dixon Valve 316L Stainless Steel Sanitary Male I-line Solid End Cap - 3" Tube OD

Save $29.61 Save $29.61
$74.02
$74.02 - $74.02
$74.02
$44.41
$44.41 - $44.41
$44.41

Dixon Sanitary I-Line End Caps - Male I-line Solid End Caps - 316L Stainless Steel
Specifications for Variant SKU: 16AI-14I300R Dixon
Ends Configuration: 3in Male I-LINE
Material(s): 316L Stainless Steel
Features:
  • 3-A Sanitary Standards for Sanitary Fittings, Number 63-03 (Authorization number 621).
Part Number Tube OD Dimensions
Weight
(Lbs.)
A B
16AI-14I100R 1" .500" 1.985" 0.3200
16AI-14I150R 1-1/2" .500" 1.985" 0.3550
16AI-14I200R 2" .562" 2.640" 0.6600
16AI-14I250R 2-1/2" .750" 3.307" 2.0000
16AI-14I300R 3" .750" 3.870" 1.9500
16AI-14I400R 4" .750" 4.870" 3.4550
16AI-14I600R 6" .750" 7.495" 8.0000
16AI-14I800R 8" .880" 9.495" 13.7500
