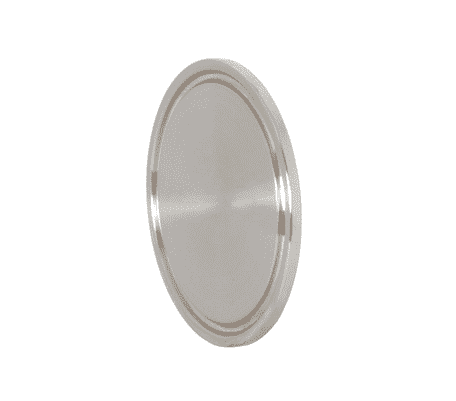

16AMV-G200 Dixon 304 Stainless Steel Sanitary Schedule 5S and 10S Solid Pipe Size End Cap - 2" Pipe Size

16AMV-G200 Dixon Valve 304 Stainless Steel Sanitary Schedule 5S and 10S Solid Pipe Size End Cap - 2" Pipe Size

Save $4.64 Save $4.64
$11.60
$11.60 - $11.60
$11.60
$6.96
$6.96 - $6.96
$6.96

Dixon Sanitary Fittings Sanitary Pipe Size End Cap - Schedule 5S and 10S Solid End Cap - 304 Stainless Steel
Specifications for Variant SKU: 16AMV-G200 Dixon
Ends Configuration: 2in Female NPT
Material(s): 304 Stainless Steel
Features:
  • 3-A Sanitary Standards for Sanitary Fittings, Number 63-03 (Authorization number 621).
  • Please note in sizes 1/2" through 12" pipe is known by its nominal inside diameter, which differs from its actual inside diameter. To distinguish pipe sizes from actual measured diameters as used for tube, the terms iron pipe size (IPS) or nominal pipe size (NPS) are usually used. For all pipe sizes, the outside diameter (OD) remains constant; the variations in wall thickness affect the inside diameter (ID).
Part Number Pipe Size Dimensions
 Weight (Lbs.)
A B
16AMV-G100 1" .250" 1.984" 0.1770
16AMV-G150 1-1/2" .250" 2.516" 0.3000
16AMV-G200 2" .250" 3.047" 0.4550
16AMV-G250 2-1/2" .250" 3.579" 0.6300
16AMV-G400 6" - - -
