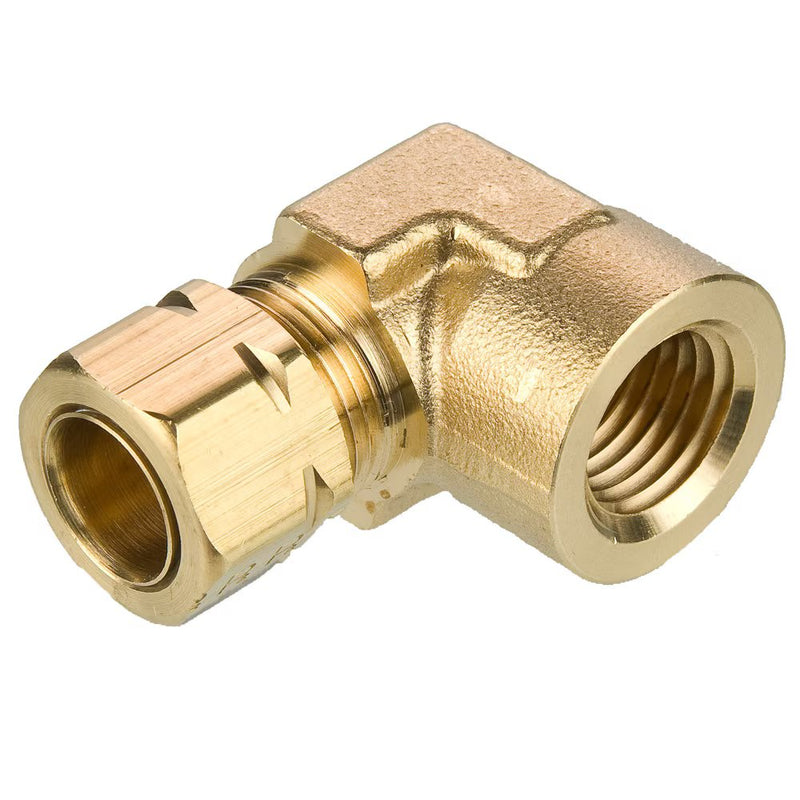

170CA-3-2 by Parker | Compress-Align® Fittings | 3/16" Tube Size x 1/8" Female Pipe Thread x 3/8" Thread | 90° Elbow | Brass | Pack of 25

170CA-3-2 by Parker | Compress-Align® Fittings | 3/16" Tube Size x 1/8" Female Pipe Thread x 3/8" Thread | 90° Elbow | Brass | Pack of 25

Save $139.77 Save $139.77
$349.43
$349.43 - $349.43
$349.43
$209.66
$209.66 - $209.66
$209.66

by Parker Hannifin
Compress-Align® Fittings:Female Elbow 170CA

Package Quantity: 25 Units

Specifications for Variant SKU: 170CA-3-2 Parker | 25 |
Brand: Compress-Align
Series: 170CA Series
Shape (Orientation): 90° Elbow
Material(s): Brass
Product Features:
  • Self-aligning captive sleeve
  • 2-piece fitting – Less inventory
  • Visible inspection before and after installation
  • 1/8” – 1” Sizes
  • No flaring, soldering or other tube preparation
  • Forged and extruded shapes
Markets:
  • Industrial
  • Packaging
  • Pneumatic
  • Printing
  • Chemical
Applications:
  • Air lines
  • Lubrication Lines
  • Cooling lines
  • Industry
  • Machinery
  • Chemical Dispensing
  • Compressors
  • Fluid transfer
Specification:
Pressure Range: See Chart Below
Temperature Range: -65° to +250° F (- 53.8° to +121.1° C)
Compatible Tubing:
  • Copper
  • Aluminum
  • Thermoplastic tubing
  • TFE, FEA, PFA
Part Number Tube Size Pipe Thread Straight Thread Hex (C) L M Flow Diameter (D)
170CA-2-2 1/8" 1/8" 5/16"-24 .93" .69" .56" .094"
170CA-3-2 3/16" 1/8" 3/8"-24 .98" .69" .56" .125"
170CA-4-2 1/4" 1/8" 7/16"-24 .92" .67" .54" .188"
170CA-4-4 1/4" 1/4" 7/16"-24 1.02" .78" .67" .188"
170CA-6-4 3/8" 1/4" 9/16"-24 1.09" .79" .73" .312"
170CA-6-6 3/8" 3/8" 9/16"-24 1.16" .89" .69" .312"
170CA-8-6 1/2" 3/8" 11/16"-20 1.23" 1.00" .69" .406"
170CA-8-8 1/2" 1/2" 11/16"-20 1.38" 1.15" .97" .408"
170CA-12-12 3/4" 3/4" 1"-18 1.97" 1.58" 1.58" .563"

Parker Fluid System Connectors Division

Parker Fluid System Connectors Division delivers quality and service from design to delivery. Their engineers leverage advanced technology to create prototypes, refine designs, and improve manufacturing efficiencies, offering tailored solutions. ISO 9001 certified and focused on sustainability, they utilize recyclable materials and a brass chip recycling program to protect the environment and control costs. Flexible assembly, packaging, and shipping systems support diverse needs, including kitting and custom labeling, ensuring high-quality products and outstanding customer support.
