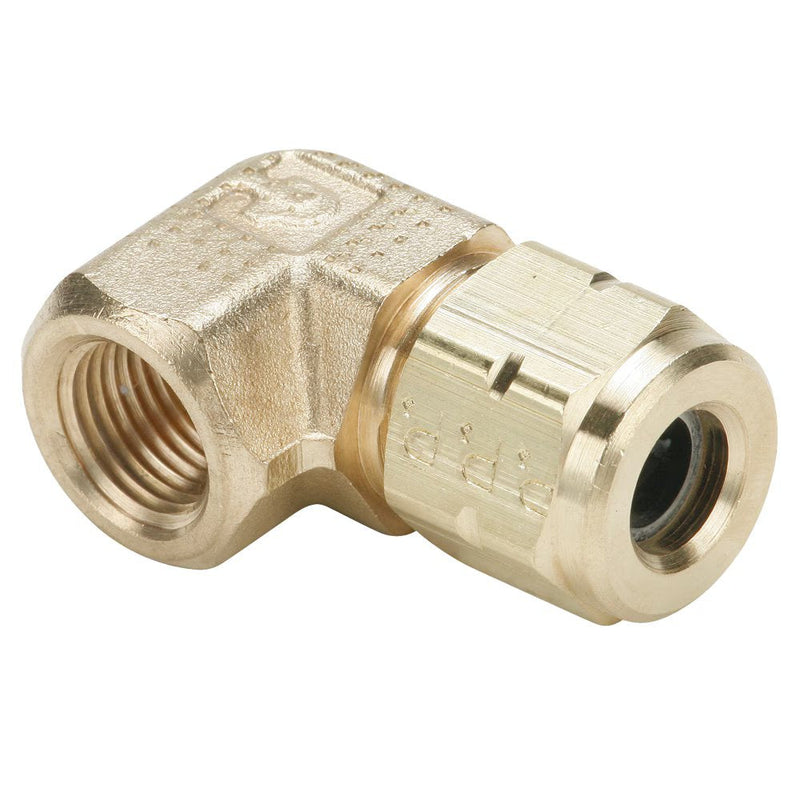

170VL-4-2 by Parker | Vibra-Lok Fittings | 1/4" Tube Size x 1/8" Female Pipe Thread | 90° Elbow | Brass | Pack of 5

Save $87.47

$218.68

$218.68 - $218.68

$218.68

$131.21

$131.21 - $131.21

$131.21

by Parker Hannifin
Vibra-Lok Fittings:Female Elbow 170VL

Package Quantity: 5 Units

Specifications for Variant SKU: 170VL-4-2 Parker \| 5 \|
Brand:	Vibra-Lok
Series:	170VL Series
Shape (Orientation):	90° Elbow
Material(s):	Brass
Special Properties:	Fuel Grade, Vibration Resistance


Product Features:	Brass Body Sleeves in Buna N and Fluorocarbon NPTF and SAE J1926 Straight Threads are Standard Excellent Vibration Resistance
Markets:	Heavy Duty Truck Trailer Mobile
Applications:	Oil Fuel Coolant Lines on engines
Specification:
Pressure Range:	Dependent on condition and tube size, refer to pressure chart
Temperature Range:	-15° to +450° F (-26.1° to +232.2° C) with Fluorocarbon Sleeve -30° to +275° F (-34.4° to +135° C) with Buna N Sleeve
Compatible Tubing:	Copper Aluminum Steel (Bundy) Stainless Steel Glass


Part Number	Tube Size	Pipe Thread	L	M	N	Flow Diameter (D)
170VL-4-2	1/4"	1/8"	.96"	.65"	.50"	.188"
170VL-5-4	5/16"	1/4"	1.16"	.81"	.70"	.250"

Parker Fluid System Connectors Division

Parker Fluid System Connectors Division delivers quality and service from design to delivery. Their engineers leverage advanced technology to create prototypes, refine designs, and improve manufacturing efficiencies, offering tailored solutions. ISO 9001 certified and focused on sustainability, they utilize recyclable materials and a brass chip recycling program to protect the environment and control costs. Flexible assembly, packaging, and shipping systems support diverse needs, including kitting and custom labeling, ensuring high-quality products and outstanding customer support.
