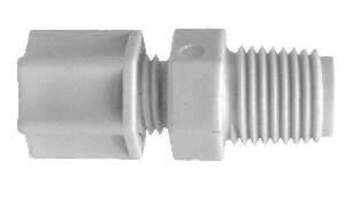

17179N (17-179N) by Midland | Plastic Compression Fitting | Male Connector | 1/4" Hose ID x 1/8" Male Pipe | Straight | White Nylon

Save $0.39

$2.48

$2.48 - $2.48

$2.48

$2.09

$2.09 - $2.09

$2.09

Midland Industries
Plastic Compression Fitting - Male Connector - Tube OD x Male Pipe - White Nylon

Corrosion resistant thermoresins designed to resist vibration, provide good electrical insulation, low flow resistance, and resistance to scale buildup.

Inventory @ Manufacturers Warehouse: 207 Units

Quantity

Specifications for Variant SKU: 17179N Midland
Shape (Orientation):	Straight
Ends Configuration:	1/4in Tube Compression, 1/8in Male NPT
Material(s):	Nylon
Applicable Specs & Approvals:	FDA Approved, NSF Listed

Features:
Standard nut and sleeves will be provided (sleeve is integral part of nut).
Specifications:
FDA and NSF Listed

Part Number	Tube OD x Male Pipe
17176N	1/8" x 1/8"
17179N (17-179N)	1/4" x 1/8"
17180N (17-180N)	1/4" x 1/4"
17188N (17-188N)	3/8" x 1/4"
17189N (17-189N)	3/8" x 3/8"
17190N (17-190N)	3/8" x 1/2"
17193N (17-193N)	1/2" x 1/4"
17194N (17-194N)	1/2" x 3/8"

Midland Industries

Midland Industries is a family of brands recognizable industry wide. Midland is a supplier of brass fittings, valves, and accessories for hose, pipe and tube in brass, bronze, stainless steel, steel, malleable iron, and plastics.
