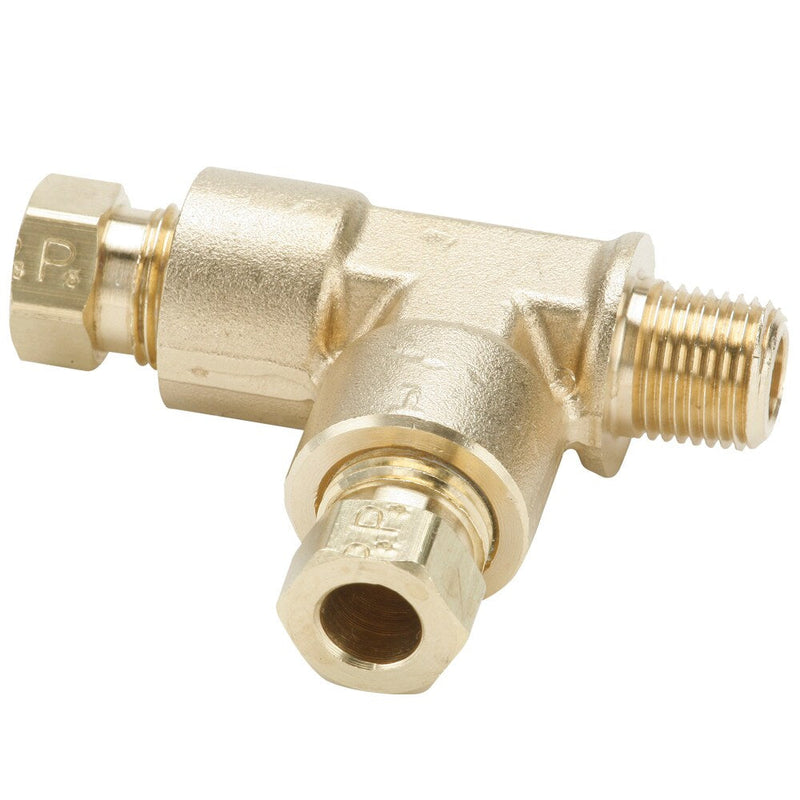

171HD-4-4 by Parker | Hi-Duty Fittings | 1/4" Tube Size x 1/4" Male Pipe Thread | Min. Orifice Size: .187" | .500" Hex | 2.21" Length | Tee | Brass | Pack of 5

Save $119.51

$298.78

$298.78 - $298.78

$298.78

$179.27

$179.27 - $179.27

$179.27

by Parker Hannifin
Hi-Duty Flareless Tube Fittings:Male Run Tee 171HD

Package Quantity: 5 Units

Specifications for Variant SKU: 171HD-4-4 Parker \| 5 \|
Series:	171HD Series
Shape (Orientation):	Tee
Material(s):	Brass
Special Properties:	Fuel Grade

Specification:
Product Features:	All brass construction Two piece fitting Higher pressure rating Easy assembly
Markets:	Mobile Industrial Compressors Lubrication
Applications:	Lubrication Lines Coolant Lines Oil Lines Engines
Pressure Range:	Up to 150 PSI (10.3 bar)
Temperature Range:	-65° to +250° F (-53.8° to +121.1° C)
Pressure Range:	See Chart Below

Compatible Tubing:	Copper Brass Seamless Steel Thermoplastic Tubing


Part Number	Tube Size	Pipe Thread	Minimum Orifice Size	A	B	Hex (C)	D
171HD-4-2	1/4"	1/8"	.187"	1.144"	.750"	.500"	.780"
171HD-4-4	1/4"	1/4"	.187"	1.207"	.812"	.500"	.937"
171HD-6-4	3/8"	1/4"	.312"	1.376"	.970"	.562"	1.000"

Parker Fluid System Connectors Division

Parker Fluid System Connectors Division delivers quality and service from design to delivery. Their engineers leverage advanced technology to create prototypes, refine designs, and improve manufacturing efficiencies, offering tailored solutions. ISO 9001 certified and focused on sustainability, they utilize recyclable materials and a brass chip recycling program to protect the environment and control costs. Flexible assembly, packaging, and shipping systems support diverse needs, including kitting and custom labeling, ensuring high-quality products and outstanding customer support.
