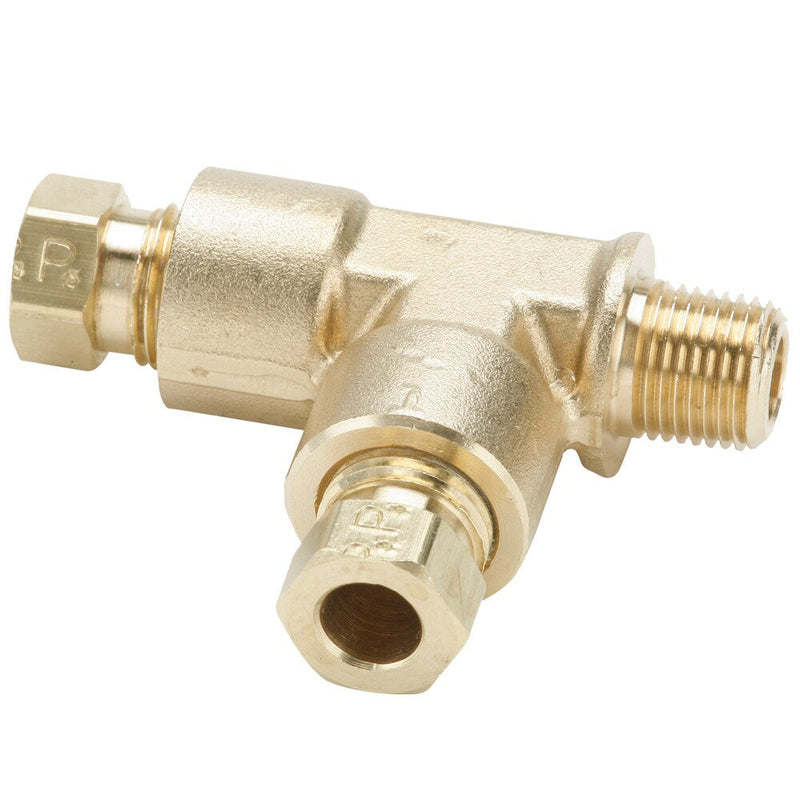

171HD-6-4 by Parker | Hi-Duty Fittings | 3/8" Tube Size x 1/4" Male Pipe Thread | Min. Orifice Size: .312" | .562" Hex | 2.38" Length | Tee | Brass | Pack of 5

171HD-6-4 by Parker | Hi-Duty Fittings | 3/8" Tube Size x 1/4" Male Pipe Thread | Min. Orifice Size: .312" | .562" Hex | 2.38" Length | Tee | Brass | Pack of 5

Save $135.67 Save $135.67
$339.18
$339.18 - $339.18
$339.18
$203.51
$203.51 - $203.51
$203.51

by Parker Hannifin
Hi-Duty Flareless Tube Fittings:Male Run Tee 171HD

Package Quantity: 5 Units

Specifications for Variant SKU: 171HD-6-4 Parker | 5 |
Series: 171HD Series
Shape (Orientation): Tee
Material(s): Brass
Special Properties: Fuel Grade
Product Features:
  • All brass construction
  • Two piece fitting
  • Higher pressure rating
  • Easy assembly
Markets:
  • Mobile
  • Industrial
  • Compressors
  • Lubrication
Applications:
  • Lubrication Lines
  • Coolant Lines
  • Oil Lines
  • Engines
Specification:
Pressure Range: Up to 150 PSI (10.3 bar)
Temperature Range: -65° to +250° F (-53.8° to +121.1° C)
Pressure Range: See Chart Below
Compatible Tubing:
  • Copper
  • Brass
  • Seamless Steel
  • Thermoplastic Tubing
Part Number Tube Size Pipe Thread Minimum Orifice Size A B Hex (C) D
171HD-4-2 1/4" 1/8" .187" 1.144" .750" .500" .780"
171HD-4-4 1/4" 1/4" .187" 1.207" .812" .500" .937"
171HD-6-4 3/8" 1/4" .312" 1.376" .970" .562" 1.000"
