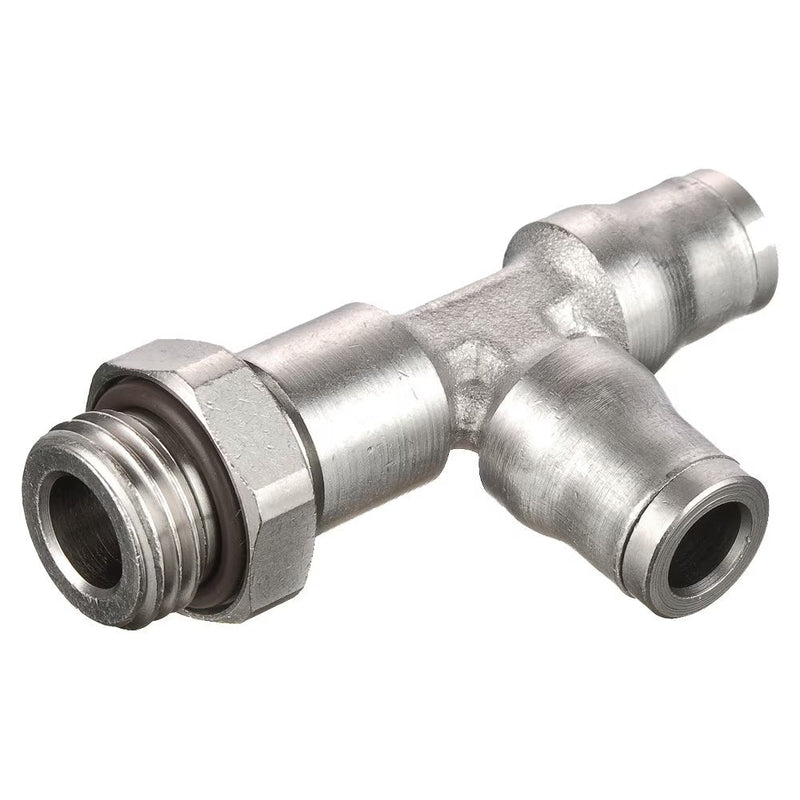

171PLM-14M-8G by Parker | Prestolok PLM Metal Push-to-Connect Fittings | Threaded Fitting | 14 mm Tube Size x 3/8" Male BSPP Threads | 26.00 mm Height | 45.00 mm Width | 72.5 mm Length | Tee | Electroless Nickel-Plated Brass | Pack of 5

171PLM-14M-8G by Parker | Prestolok PLM Metal Push-to-Connect Fittings | Threaded Fitting | 14mm Tube Size x 1/2" Male BSPP Threads | 26.00mm Height | 45.00mm Width | 72.5mm Length | Tee | Electroless Nickel-Plated Brass | Pack of 5

Save $26.95

$206.15

$206.15 - $206.15

$206.15

$179.20

$179.20 - $179.20

$179.20

by Parker Hannifin
Prestolok PLM Metal Push-to-Connect Fittings:171PLM Male Run Tee Tube to Tube to BSPP or M5

Package Quantity: 5 Units

Specifications for Variant SKU: 171PLM-14M-8G Parker \| 5 \|
Series:	171PLM Series
Shape (Orientation):	Tee
Material(s):	Nickel-Plated Brass
Special Properties:	Food Grade, Corrosion Resistance, Chemical Resistance, Abrasion Resistance, Silicone Free

Product Features:	High phosphorous, FDA-compliant, chemical resistant, nickel-plated collet and body FKM seal Chemical, corrosion, and abrasion resistance NPT, BSPT, BSPP, and metric threads Silicone Free
Markets:	Industrial Chemical Life Science Semi-conductors Automation Food Processing
Compatible Media:	Food Fluids Harsh Detergents Cleaning In Cold/Hot Water Steam Oils Compressed Air Inert Gases
Pressure Range:	Up to 435 psi (30 bar) 290 psi (19.9 bar) for 169PLM
Vacuum Rating:	28" Hg
Temperature Range:	-13° to +302° F (-25° to +150° C)
Compatible Tubing:	Polyethylene Polyurethane 95 Durometer Shore A* Nylon FEP


Part Number	Tube Size	BSPP / M5	F	H1	H2	K	L
171PLM-4M-M5	4 mm	M5X0.8	10 mm	18.00 mm	22.50 mm	11.00 mm	23.00 mm
171PLM-6M-2G	6 mm	1/8"	13 mm	21.50 mm	25.00 mm	14.00 mm	28.00 mm
171PLM-6M-4G	6 mm	1/4"	16 mm	21.50 mm	24.50 mm	17.50 mm	28.00 mm
171PLM-8M-2G	8 mm	1/8"	14 mm	23.50 mm	26.50 mm	15.00 mm	31.00 mm
171PLM-8M-4G	8 mm	1/4"	16 mm	23.50 mm	26.50 mm	17.50 mm	31.00 mm
171PLM-10M-4G	10 mm	1/4"	18 mm	29.00 mm	33.00 mm	19.50 mm	37.50 mm
171PLM-12M-6G	12 mm	3/8"	21 mm	31.00 mm	36.50 mm	23.00 mm	40.50 mm
171PLM-14M-8G	14 mm	1/2"	24 mm	34.00 mm	38.50 mm	26.00 mm	45.00 mm
