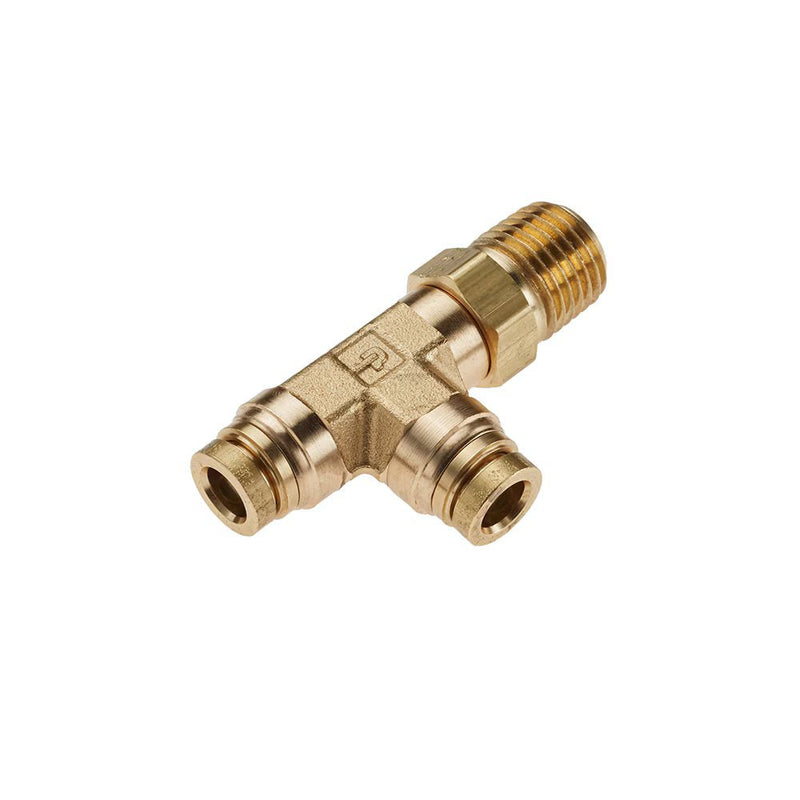

171PTCNS-6-4 by Parker | Threaded Fitting | 3/8" Rigid Push-to-Connect x 1/4" Male NPT Thread | 2.07" Length | Tee | Brass | Pack of 10

171PTCNS-6-4 by Parker | Threaded Fitting | 3/8" Rigid Push-to-Connect x 1/4" Male NPT Thread | 2.07" Length | Tee | Brass | Pack of 10

Save $159.38 Save $159.38
$398.45
$398.45 - $398.45
$398.45
$239.07
$239.07 - $239.07
$239.07

by Parker Hannifin
PTC Brass Fittings:Male Run Tee Rigid 171PTCNS

Package Quantity: 10 Units

Specifications for Variant SKU: 171PTCNS-6-4 Parker | 10 |
Series: 171PTCNS Series
Shape (Orientation): Tee
Material(s): Brass, Stainless Steel
Seal Material(s): Buna-N/Nitrile Rubber
Product Features:
  • Brass Collet
  • Buna N O-ring
  • Stainless Steel Tube Support
  • Meets D.O.T. FMVSS571.106
  • Meets SAE J2494-3
  • Meets SAE J2494 & SAE J2494-3
Markets:
  • Heavy Duty Truck
  • Trailer
  • Mobile
Applications:
  • Air Brakes
  • Air Tanks
  • Air Ride
  • Sliders
  • Tire Inflation
  • Primary & Secondary Air Lines
Specification:
Pressure Range: Up to 250 PSI (17.2 bar)
Temperature Range: -50° to +230° F (-45.5° to +100° C)
Temperature Range (3/16" & 5/32 only): -40 to +200F (-40 to +93.3C)
Compatible Tubing:
  • SAE J844 Type A & B nylon tubing
Part Number Tube Size 1 Tube Size 2 Pipe Thread L1 L2 N Wrench Flats
171PTCNS-5/32-2* 5/32" 5/32" 1/8" .76" .76" .75" 7/16"
171PTCNS-5/32-4* 5/32" 5/32" 1/4" .76" .76" .88" 7/16"
171PTCNS-3-2* 3/16" 3/16" 1/8" .77" .77" .75" 7/16"
171PTCNS-4-2 1/4" 1/4" 1/8" .91" .91" .77" 15/32"
171PTCNS-4-4 1/4" 1/4" 1/4" .88" .88" .91" 15/32"
171PTCNS-4-6-4 1/4" 3/8" 1/4" .88" 1.10" .97" 5/8"
171PTCNS-6-4 3/8" 3/8" 1/4" 1.10" 1.10" .97" 5/8"
171PTCNS-6-4-4 3/8" 1/4" 1/4" 1.10" .88" .97" 5/8"
171PTCNS-6-4-6 3/8" 1/4" 3/8" 1.22" .97" .93" 5/8"
171PTCNS-6-6 3/8" 3/8" 3/8" 1.10" 1.10" .91" 5/8"
171PTCNS-6-8 3/8" 3/8" 1/2" 1.09" 1.17" 1.26" 5/8"
171PTCNS-8-4 1/2" 1/2" 1/4" 1.31" 1.28" 1.07" 3/4"

*5/32 and 3/16 with black button
